Pre-feeder, Stacker & Coiler

Pre-feeding and deposit systems for wire handling. Korisung develops various wire feeding machines, wire stackers, and wire coilers according to customers’ production needs. The connections to wire cutting stripping machines ensure the synchronized process and the safety of operations.

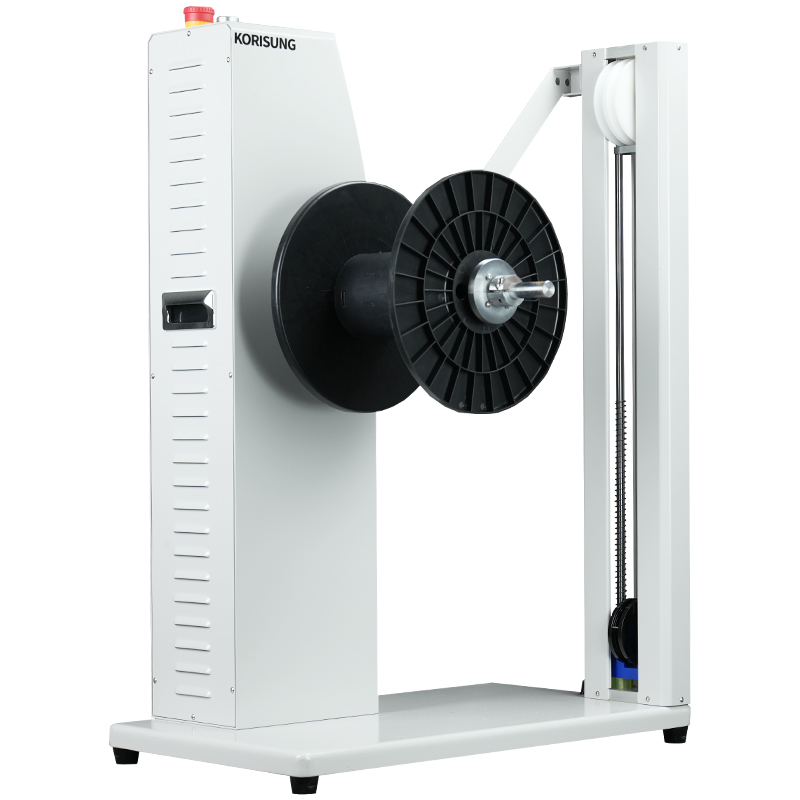

EPR 300

EPR 300

The EPR 300 wire feeder machine is designed for wire with reels and loose/bulk wires. The conical chuck accommodates reels with an inner diameter ranging from 20 to 85 mm. Max. 20 kg load-bearing for max. 6 mm diameter wires.

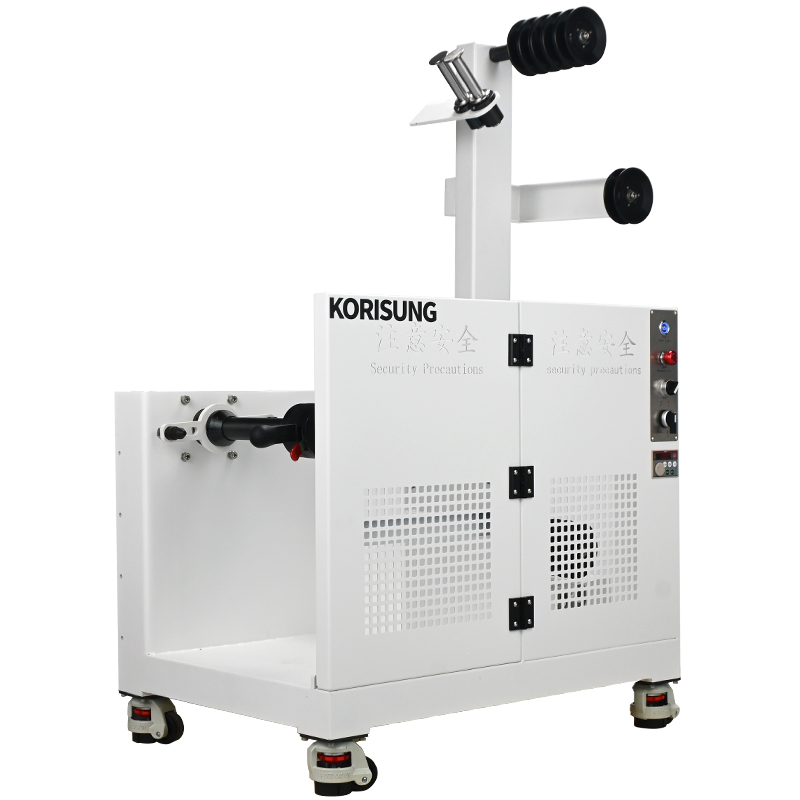

EPR 355

EPR 355

The EPR 355 is a compact & robust wire feeding machine for max. 13 mm diameter wires and cables with max. 60 kg load-bearing.

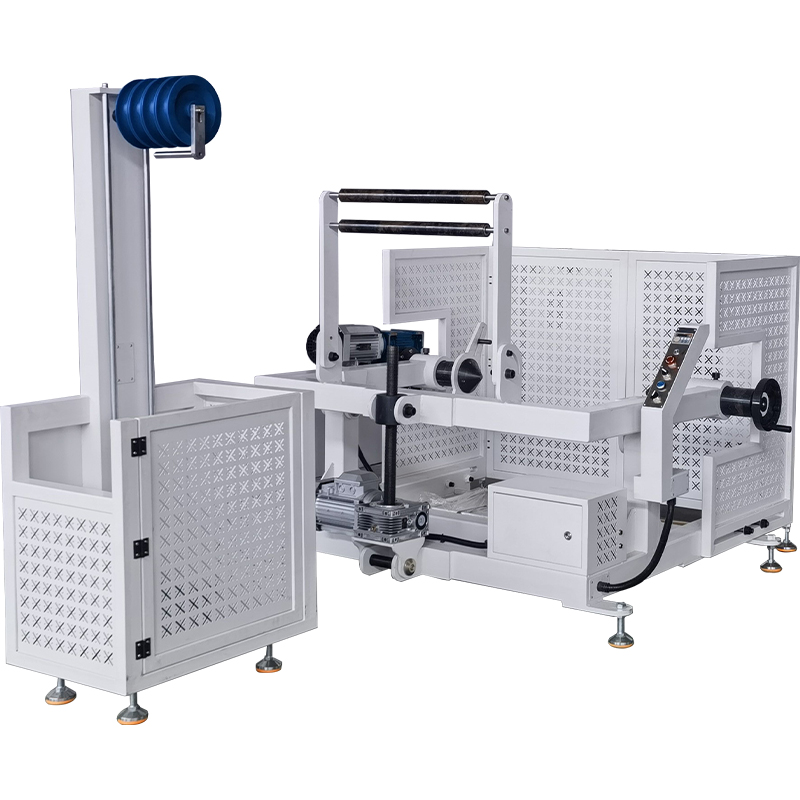

EPR 800

EPR 800

The EPR 800 is a heavy-duty wire feeding machine for up to 35 mm diameter large cables with max. 1500 kg load-bearing for wire/cable reels up to 1500 mm diameter.

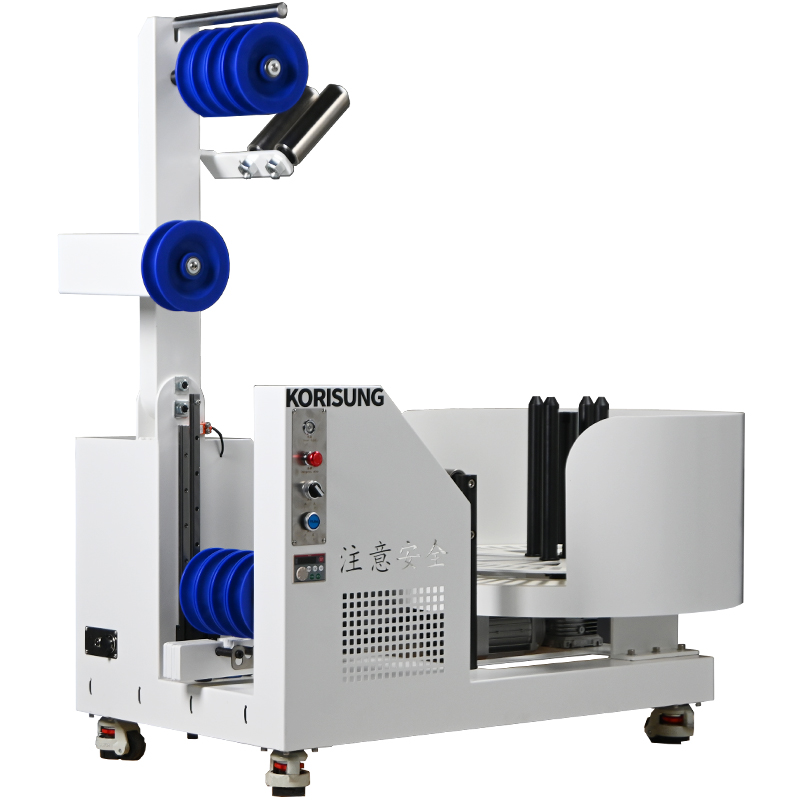

EPRB 600

EPRB 600

The EPRB 600 is a flexible wire feeding machine that fits with loose/bulk wires and wire with reels up to 850 mm OD, 850 mm width (height) and 200 kg weight. The machine is capable for up to 25 mm diameter heavy cables.

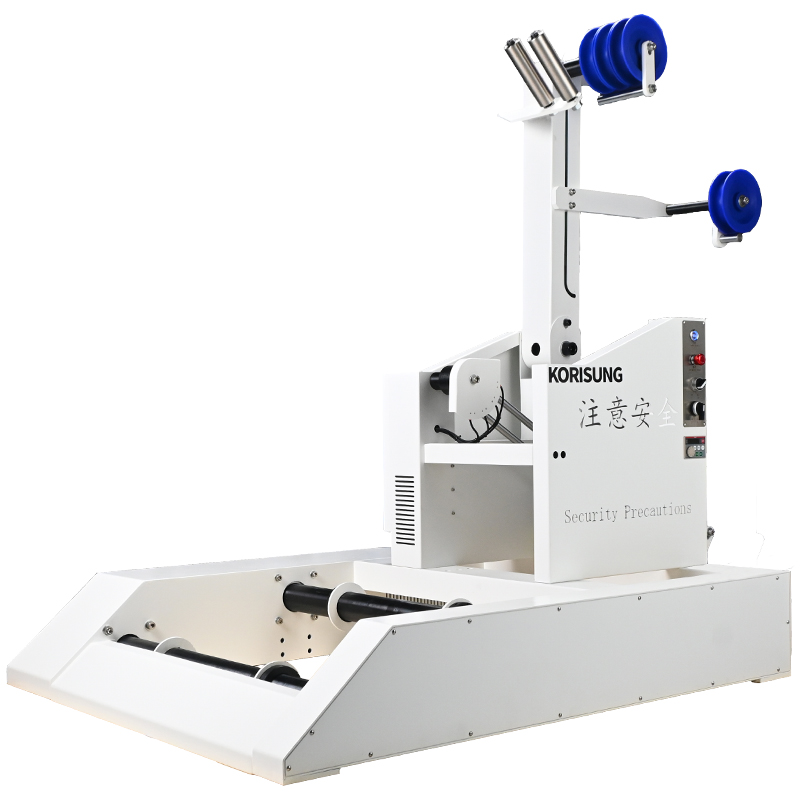

EPRC 600

EPRC 600

Made from high quality carbon steel, the EPRC 600 is a robust wire feeding machine for max. 25 mm diameter wires and cables with max. 300 kg load-bearing for different size reels.
ESR 800

ESR 800

The ESR 800 is a wire stacker consisting of conveying belts and a stacking groove, designed to match with cut and strip machine. The depositing length varies from 1.5 meters to 5 meters.
MCR 800

MCR 800

The MCR 800 is a cable coiler for 200 - 360 mm Coil ID/max. 380 mm coil OD. Fast coiling speed of 1.5 m/s.
MCR 805

MCR 805

The MCR 805 is a cable coiler for 200 - 650 mm Coil ID/max. 680 mm coil OD. Fast coiling speed of 1.5 m/s.
