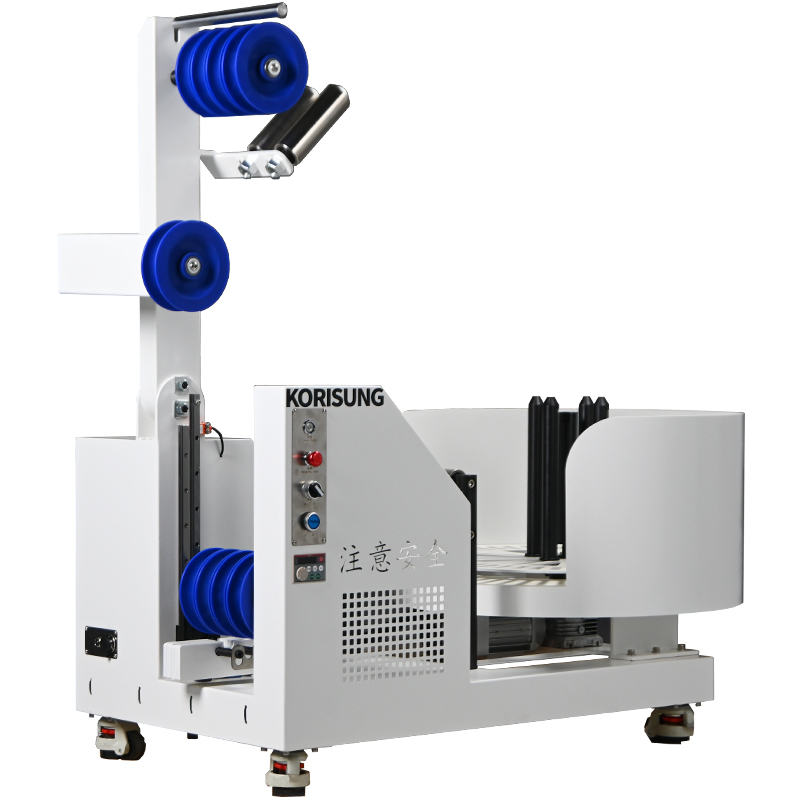

The EPRB 600 is a flexible wire feeding machine that fits with loose/bulk wires and wire with reels up to 850 mm OD, 850 mm width (height) and 200 kg weight. The machine is capable for up to 25 mm diameter heavy cables.
| Model | EPRB 600 | EPRB 600S |
|---|---|---|
| Max. wire diameter | 25 mm | 25 mm |
| Applicable wire packing | Bulk / reel | Bulk / reel |
| Roll inner diameter | 38 - 200 mm | 38 - 200 mm |
| Roll outer diameter | 100 - 650 mm | 100 - 850 mm |
| Roll width (height) | Max. 650 mm | Max. 850 mm |
| Feeding speed adjustment | Continuously variable transmission (CVT) | Continuously variable transmission (CVT) |
| Max. load-bearing | 100 kg | 200 kg |
| Power | 0.75 kW | 1.5 kW |
| Power supply | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards | Different types for different standards |
| Dimension | 1544 * 660 * 1244 mm | 1544 * 850 * 1344 |
