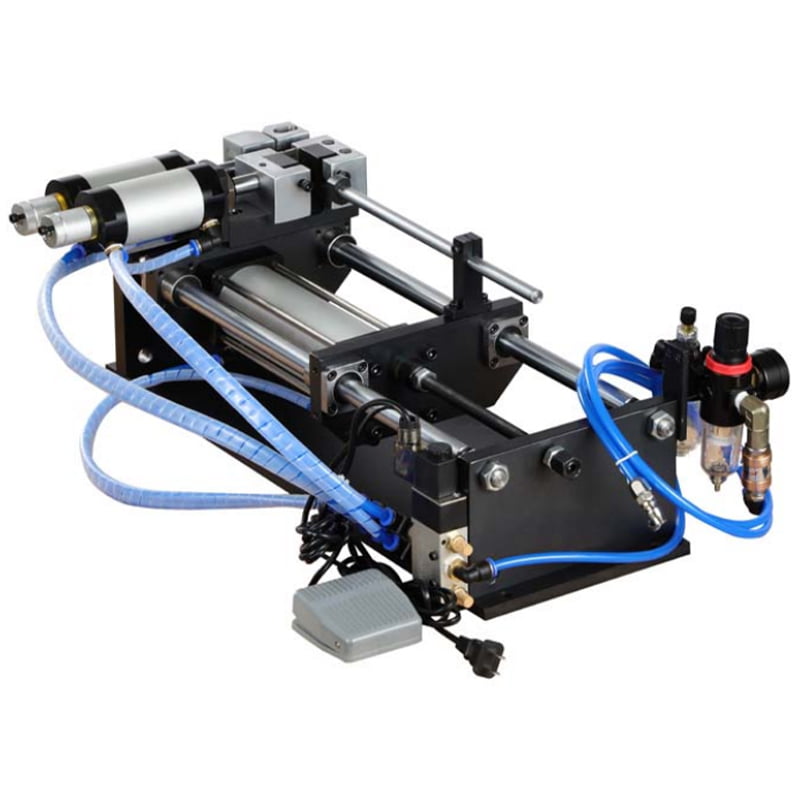

The MS 600 is a robust wire stripping machine with an enhanced guide rail for 3 – 25 mm OD wires and cables. There are 4 versions that differ in stripping length of 150/300/500/800 mm.
| Model | MS 600S | MS 600M | MS 600L | MS 600U |
|---|---|---|---|---|
| Wire diameter | 3 - 25 mm | 3 - 25 mm | 3 - 25 mm | 3 - 25 mm |
| Full stripping length | Max. 150 mm | Max. 300 mm | Max. 500 mm | Max. 800 mm |
| Blade material | High speed steel/tungsten steel (optional) | High speed steel/tungsten steel (optional) | High speed steel/tungsten steel (optional) | High speed steel/tungsten steel (optional) |
| Power supply | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards | Different types for different standards | Different types for different standards | Different types for different standards |
| Compressed air connection | 0.4 - 0.7 MPa | 0.4 - 0.7 MPa | 0.4 - 0.7 MPa | 0.4 - 0.7 MPa |
| Package weight | 65 kg | 73 kg | 88 kg | 107 kg |
| Package dimension | 760 * 460 * 360 mm | 1100 * 450 * 360 mm | 1450 * 450 * 360 mm | 2100 * 450 * 300 mm |
