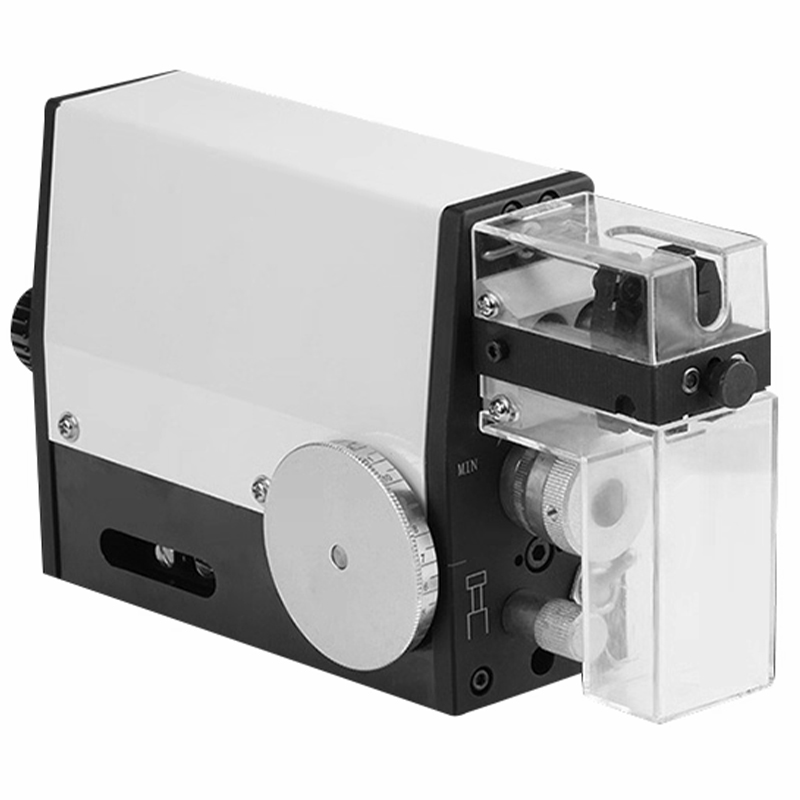

The MS 300 is a pneumatic wire and cable stripping machine for single wire up to 2.08 mm² (3.2 mm OD).
1. The machine only requires a compressed air supply at 0.55 – 0.8 MPa.
2 No blade changeover thanks to the uni-V blade set, and there are optional specific blade materials for different processing requirements.
3. Up to 20 mm full stripping length and 19 mm partial stripping (half stripping) length.
4. Compact design with a robust body.
5. Simple operation: activated by automatic sensor triggering, there are 3 knobs to adjust the incision diameter, stripping length, and pull-off length.
6. Equipped with an inserted box to collect stripped wire insulation material for easy cleaning.
7. Fast cycle time of 0.3 s/pcs.
| MS 300 | |
|---|---|
| Conductor cross section | 0.03 - 2.08 mm² |
| Max. wire diameter | 3.2 mm |
| Blade incision increment | 0.01 mm |
| Full stripping length | 1.5 - 19 mm |
| Partial stripping length | 1.5 - 19 mm |
| Stripping length increment | 0.5 mm/2 mm (full stripping/partial stripping) |
| Single cycle | 0.3 s |
| Blade material | High speed steel/tungsten steel (optional) |
| Compressed air connection | 0.55 - 0.8 MPa |
| Weight | 2 kg |
| Dimension | 265 * 70 * 135 mm |
