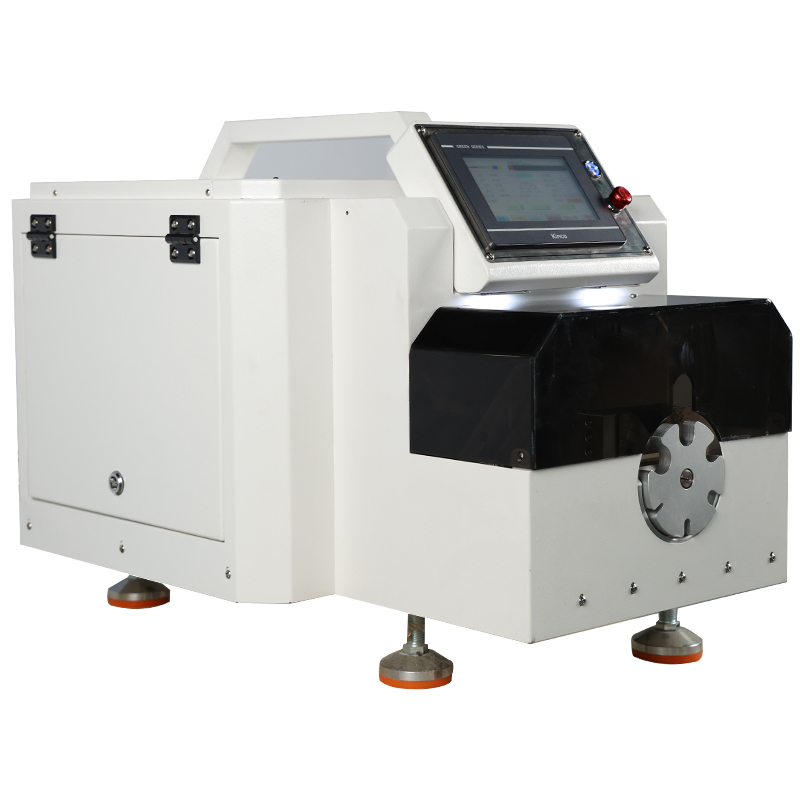

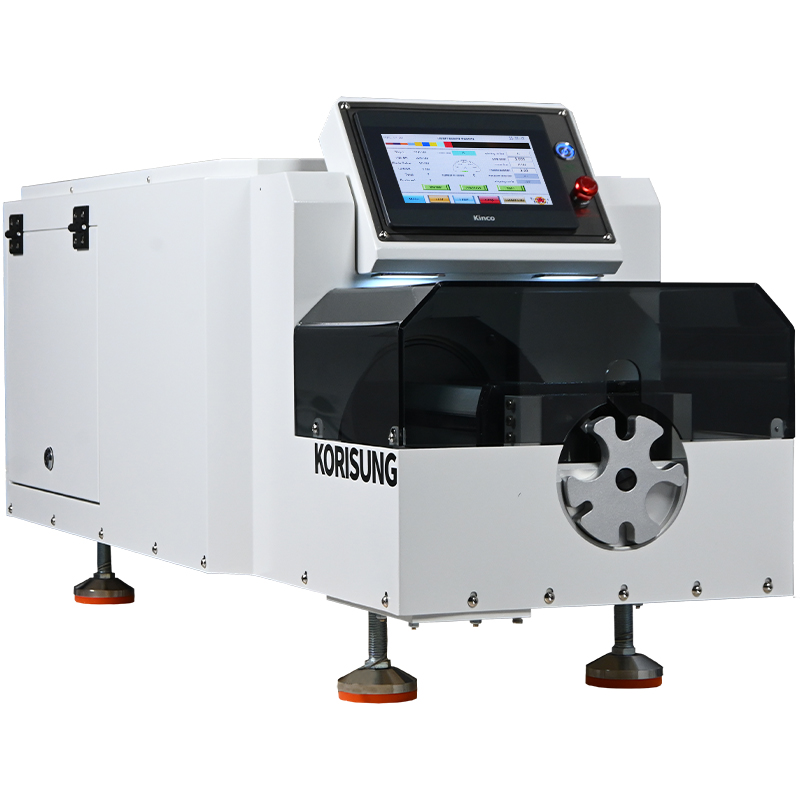

The MRS 800 series cable stripper has 3 versions with rotary balde set that specifically designed for stripping the out jacket of the electric multi-layer cables, EV (electric vehicle) charging cables and medical cables that require precise incision.
1. The machine can process max. 25/25/50 mm outer diameter and the stripping length is up to 100/180/350 mm.
2. PLC touchscreen with programmable incision diameter and stripping length.
3. The stripping length tolerance is within 0.2 mm.
4. Robust gripper to hold the cable during the stripping process.
5. Custom options for special applications.
| Model | MRS 800S | MRS 800M | MRS 800L |
|---|---|---|---|
| Cable diameter | 5 - 25 mm | 5 - 25 mm | 12 - 50 mm |
| Stripping length | 0 - 100 mm | 0 - 180 mm | 0 - 350 mm |
| Stripping length increment | 0.01 mm | 0.01 mm | 0.01 mm |
| Stripping length tolerance | < 0.2 mm | < 0.2 mm | < 0.2 mm |
| Blade material | High speed steel/tungsten steel (optional) | High speed steel/tungsten steel (optional) | High speed steel/tungsten steel (optional) |
| Display mode | 7" touchscreen | 7" touchscreen | 7" touchscreen |
| Productivity | Approx. 600 pcs./h | Approx. 600 pcs./h | Approx. 600 pcs./h |
| Power | 500 W | 500 W | 500 W |
| Power supply | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards | Different types for different standards | Different types for different standards |
| Compressed air connection | 0.5 - 0.7 MPa | 0.5 - 0.7 MPa | 0.5 - 0.7 MPa |
| Package weight | 80 kg | 95 kg | 160 kg |
| Package dimension | 900 * 400 * 420 mm | 900 * 400 * 420 mm | 900 * 400 * 420 mm |
