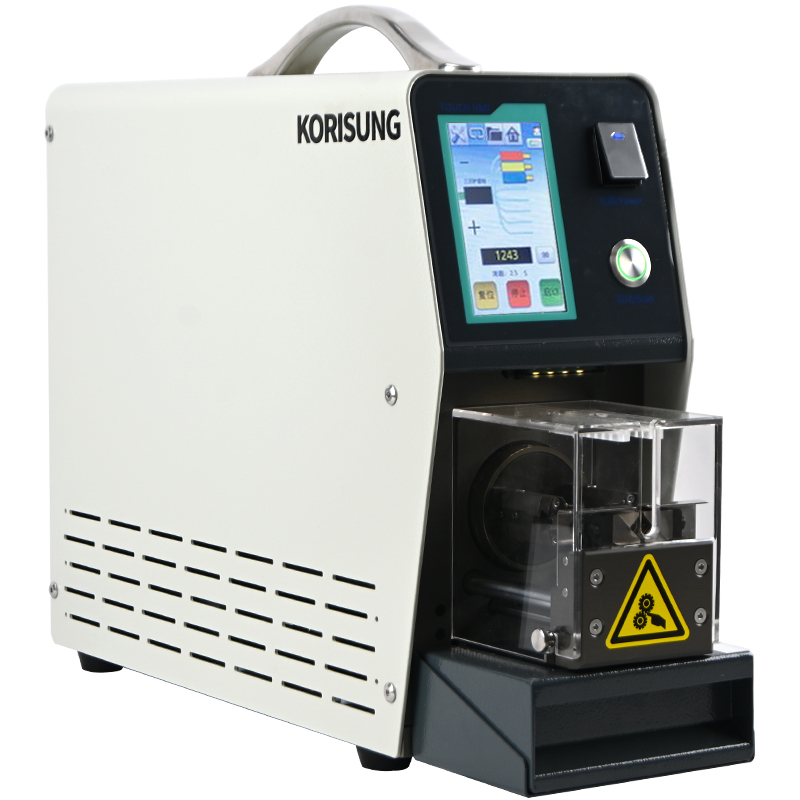

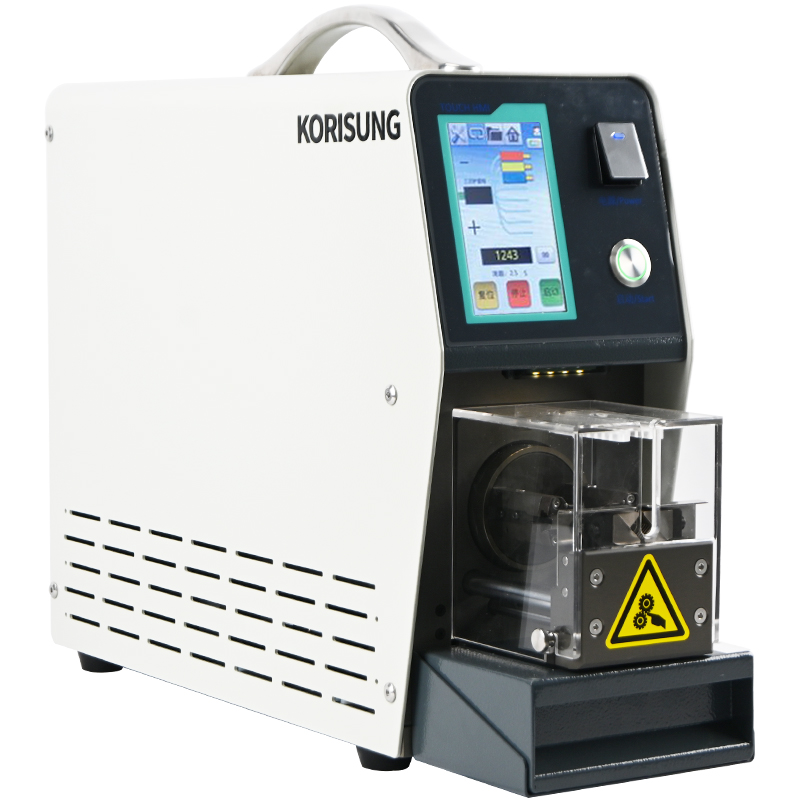

The MRS 300 is an all-servo-powered programmable wire stripper. The machine is suitable for coaxial cable stripping, multi-core cable stripping, and sequence stripping.
1. Up to 5-layer rotary incision with programmable data for each layer.
2. Specific program that enables sequence processing for different-color single wires.
3. Memory capacity for different-size and different-type cables with fast switch.
4. Safety guard with an open window for safe and easy operation.
5. Inspired by mobile phones, the machine features intuitive HMI, which makes it very user-friendly.
| MRS 300 | |
|---|---|
| Max. wire diameter | 6.5 mm |
| Max. stripping layer | 5 |
| Blade incision increment | 0.01 mm |
| Full stripping length | 1 - 40 mm |
| Partial stripping length | 1 - 40 mm |
| Stripping length increment | 0.1 mm |
| Blade material | High speed steel/tungsten steel (optional) |
| Display mode | 4.3" touchscreen |
| Power supply | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards |
| Compressed air connection | 0.4 - 0.7 MPa |
| Weight | 22 kg |
| Dimension | 520 * 155 * 360 mm |
