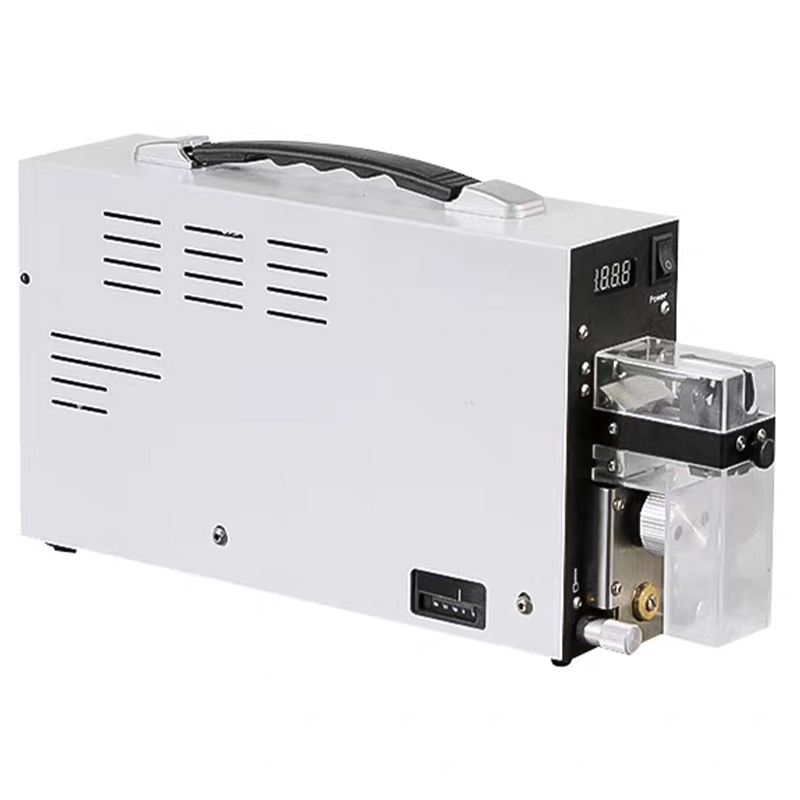

The ES 300 is an electric wire and cable stripper with a diameter of up to 4.2 mm (4 mm²) and a stripping length of 20 mm.
1. The machine is capable of PVC, PE, and PP cables with universal V blade set
2. The machine only requires an electricity supply.
3. The gripper can be customized to fit with short wires that have limited insertion length.
4. Activated automatically by sensor triggering or manually by foot pedal.
5. The incision diameter, stripping length, and pull-off length can be adjusted by 3 knobs.
| ES 300 | |
|---|---|
| Conductor cross section | 0.03 - 4 mm² |
| Max. wire diameter | 4.2 mm |
| Blade incision increment | 0.01 mm |
| Full stripping length | 1.5 - 19 mm |
| Partial stripping length | 1.5 - 19 mm |
| Stripping length increment | 0.1 mm |
| Blade material | High speed steel/tungsten steel (optional) |
| Power | 120 W |
| Rated power | 60 W |
| Power supply | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards |
| Weight | 4.5 kg |
| Dimension | 380 * 85 * 188 mm |
