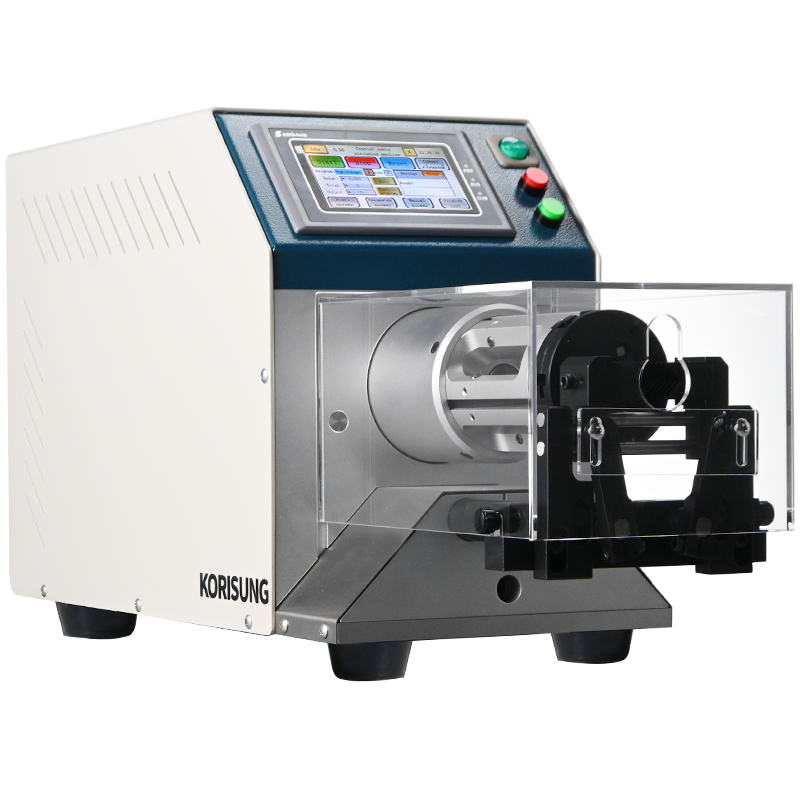

The MCRS 310 is a rotary stripping machine for rigid and thick coaxial cables, electrical cables and electric vehicle (EV) cables up to 18 mm in diameter.
| MCRS 310 | |
|---|---|
| Wire OD | 1.5 - 18 mm |
| Incision increment | 0.01 mm |
| Stripping capability | 9 layers |
| Stripping length | 0 - 90 mm |
| Stripping length increment | 0.01 mm |
| Blade quantity | 4 pcs. |
| Productivity | 400 - 800 pcs./h (depending on wire type) |
| Display mode | Touchscreen |
| Program storage capacity | 100 programs (editable program name / quick copy button) |
| Power | 600 W |
| Power supply | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards |
| Weight | 42 kg |
| Dimension | 720 * 230 * 350 mm |
