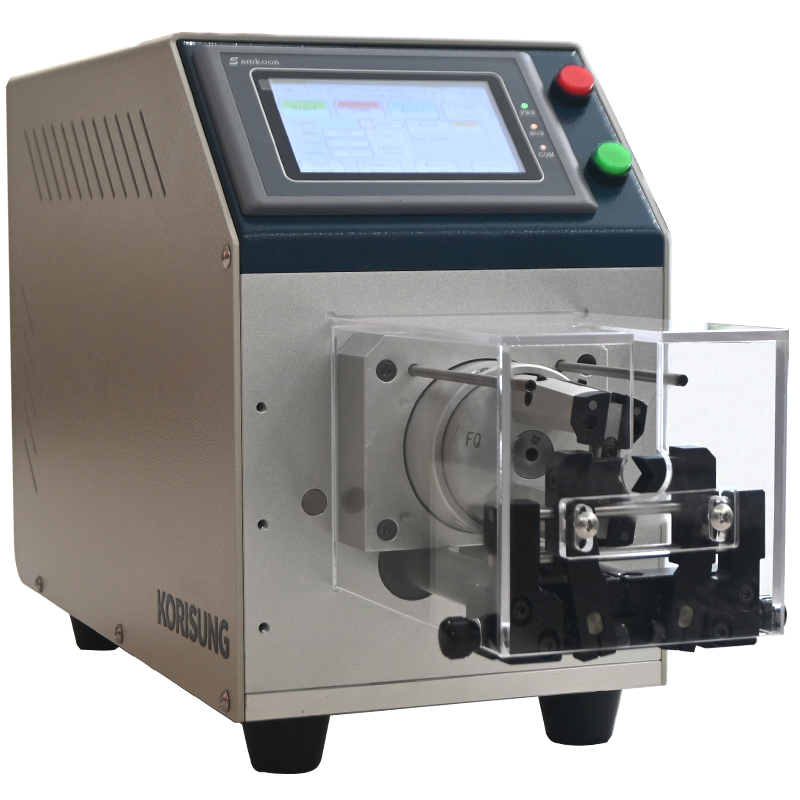

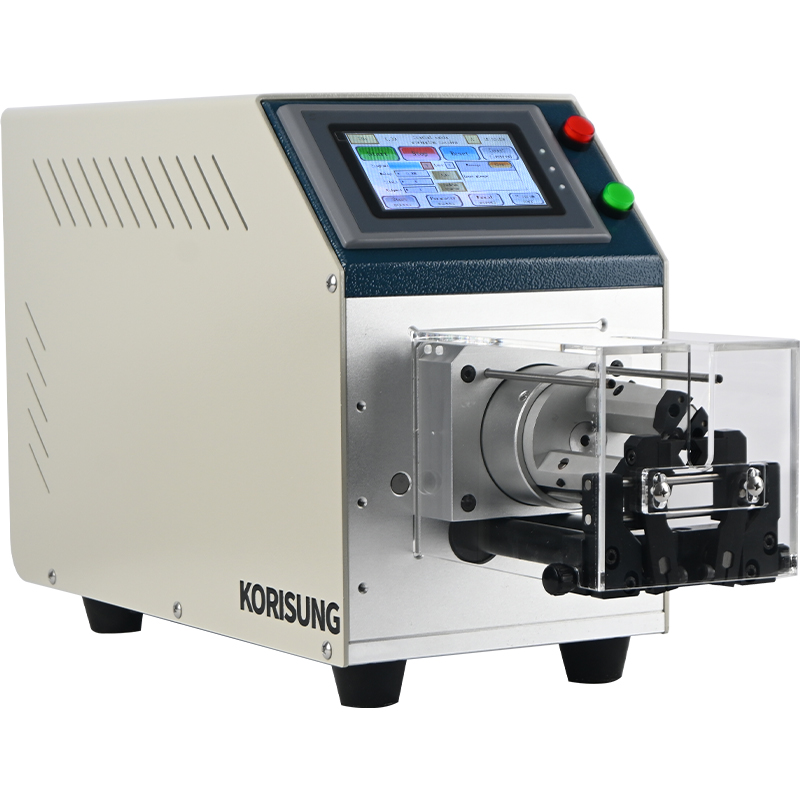

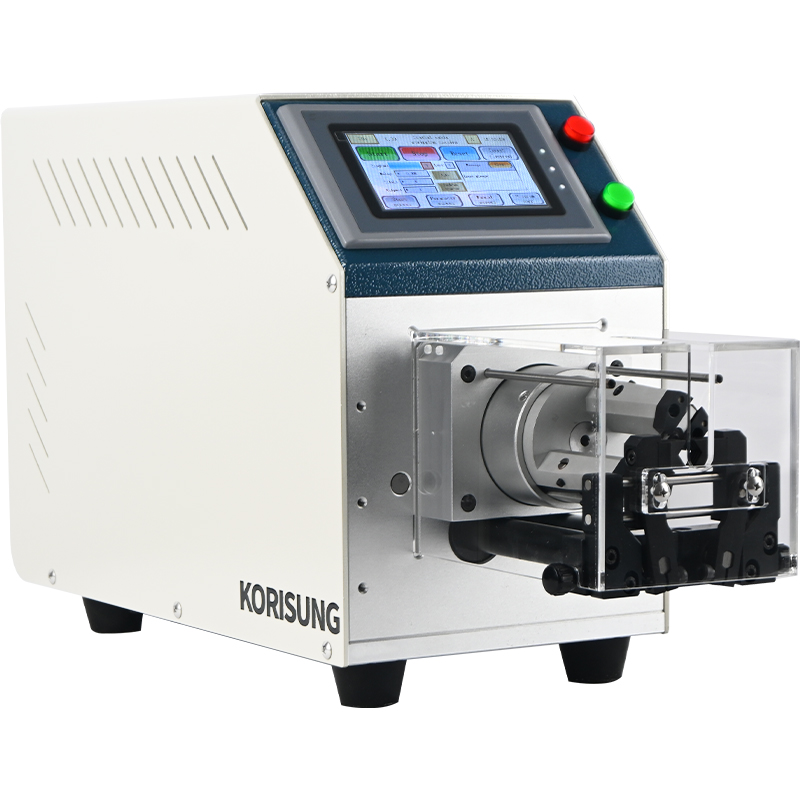

The MCRS 300 is a programmable rotary stripping machine for flexible coaxial cables, semi-flexible coaxial cables, automotive cables, medical cables with a diameter range of 0.8 – 7 mm.
| MCRS 300 | |
|---|---|
| Wire OD | 0.8 - 7 mm |
| Incision increment | 0.01 mm |
| Stripping capability | 9 layers |
| Stripping length | 0 - 56 mm |
| Stripping length increment | 0.01 mm |
| Blade quantity | 2 pcs. |
| Productivity | 750 - 1150 pcs./h |
| Display mode | Touchscreen |
| Program storage capacity | 100 programs (editable program name / quick copy button) |
| Power | 400 W |
| Power supply | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards |
| Weight | 26 kg |
| Dimension | 600 * 185 * 280 mm |
