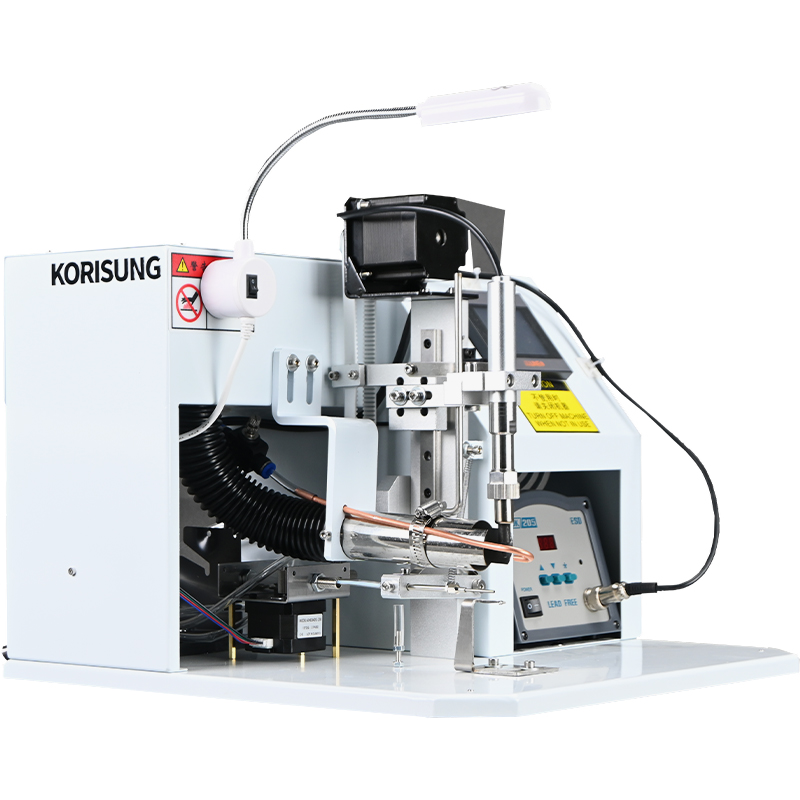

The ETN 300 is a universal soldering/tinning machine for a wide range of industrial soldering applications.
1. PLC touchscreen with easy setup.
2. The user experience is optimized: adjustable soldering height, auto-blowing for the soldering smoke, and auto-cleaning for the soldering iron.
3. There are various standard soldering irons and positioning plates, and also special products can be customized.
4. The flat/inclined soldering mode can be switched in the program.
| ETN 300 | |
|---|---|
| Display mode | 4.3" touchscreen |
| Power | 160 W |
| Power supply | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards |
| Compressed air connection | 0.4 - 0.6 MPa |
| Weight | 20 kg |
| Dimension | 400 * 400 * 450 mm |
