Shield Process

Wire brush machines for shielded cables. From simple shield brushing to automatic shield stripping, folding and cutting, Korisung offers a wide variety of processing machines to meet different shield processing demands.

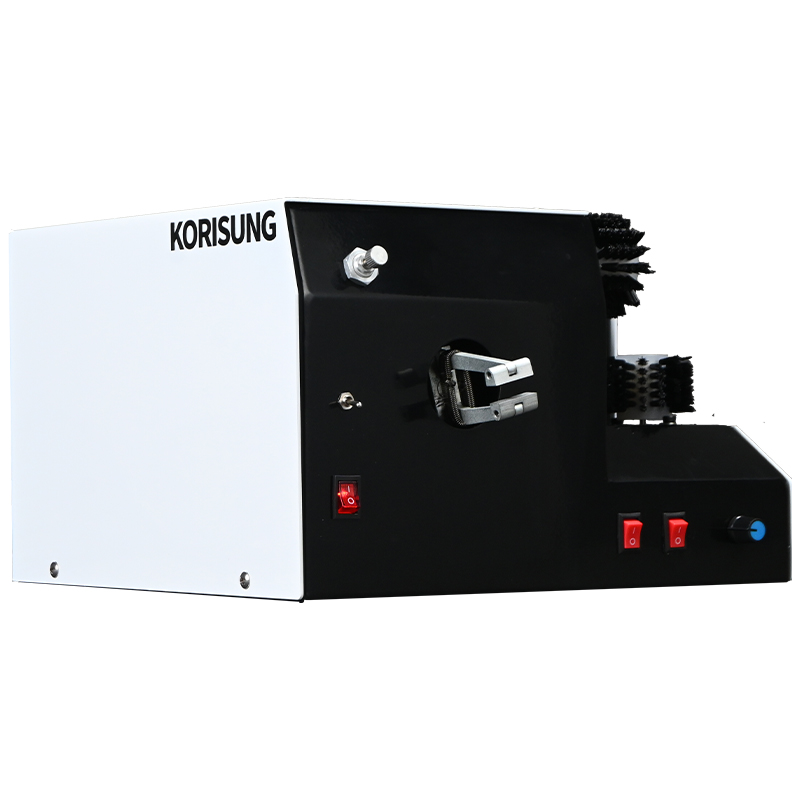

ESP 300

The ESP 300, with 3 working units, is a versatile brushing, separating, and twisting machine for shielded cables, ground wires, and braided cables.

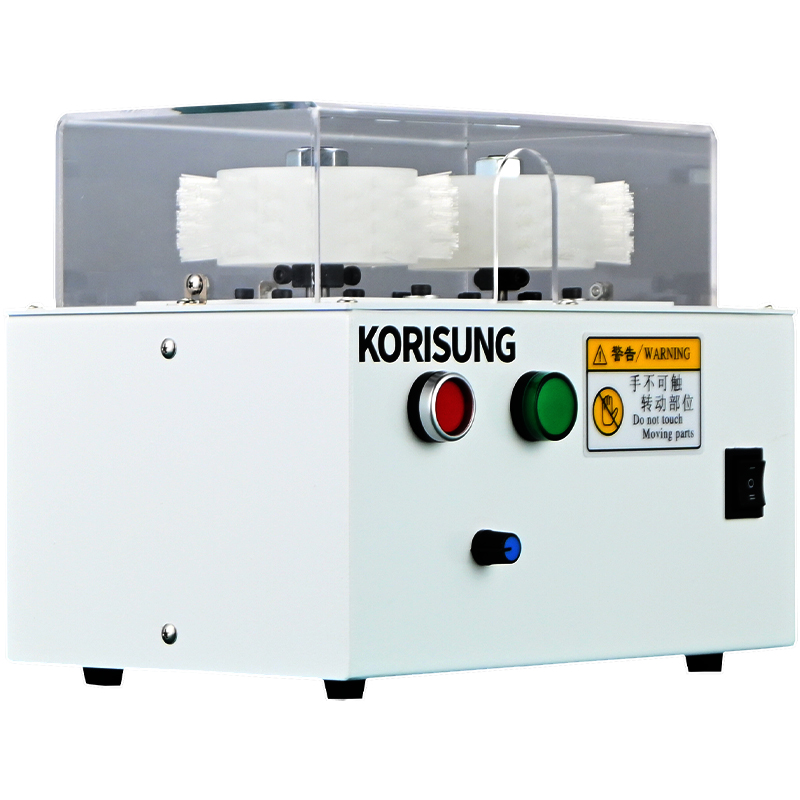

ESP 600

ESP 600

The ESP 600 is specifically designed for brushing and combing the shield layer inside high voltage cables and other shielded cables. There are 2 types of brush for different wire outer diameter ranges: brass brush for 1-6 mm OD and nylon brush for 1-25 mm OD.

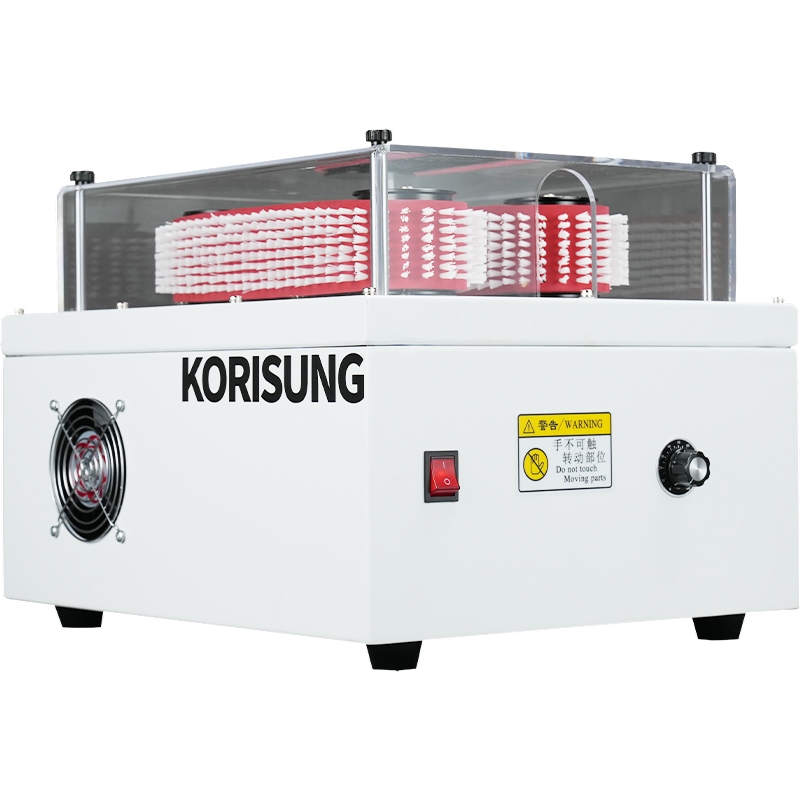

ESP 605

ESP 605

The ESP 605 is a brush and comb machine for 1 - 30 mm OD high voltage cables and shielded cables. Equipped with belt-type brushes that increase the brush length up to 200 mm. 1. Applicable for 1 - 30 mm OD cables. 2. Equipped with a max. 1800 rpm
MCSP 300

MCSP 300

The MCSP 300 is an automatic machine that brushes the shield layer, folds the shield layer, and cuts the shield to length, which is suitable for shielded cables and USB cables.
MHSP 300

MHSP 300

The MHSP 300 is an automatic machine that strips the cable out jacket, brushes the shield layer, folds the shield layer, cuts the shield to length, and strips the inner jacket, which is suitable for high voltage shielded cables, coaxial cables up to 18 mm OD.
MHSP 600

MHSP 600

Designed for max. 22 mm OD (2.5 - 120 mm2) shielded cables, The MHSP 600 is an automatic machine that strips the cable out jacket, brushes the shield layer, folds the shield layer, cuts the shield to length, and strips the inner jacket.
MLSP 300

MLSP 300

The MLSP 300 is a manual shield cutting device for new energy shielded cables (max. 16 mm OD/70mm²)
