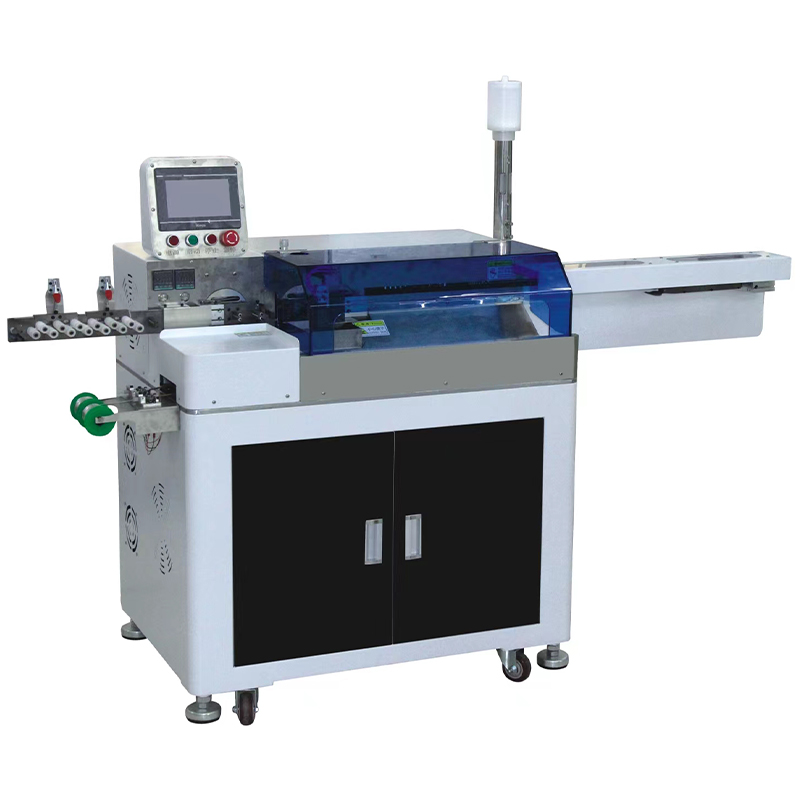

The MAT 315 is a versatile 2-side fully automatic wire tinning machine to process a maximum of 8 wires simultaneously. The machine automatically cuts, strips, twist and tins on wires, and the productivity can be up to 10000 pcs./h.
| MAT 315 | |
|---|---|
| Conductor cross section | 0.03 - 1.5 mm² (custom option) |
| Cutting length | 15 - 1000 mm (custom option) |
| Cutting length increment | 0.1 mm |
| Cutting length tolerance | < 0.002 * L |
| Full stripping length (left side) | 0 - 7 mm (custom option) |
| Full stripping length (right side) | 0 - 7 mm (custom option) |
| Stripping length increment | 0.01 mm |
| Twisting length | 4 - 10 mm |
| Tinning length | 0.5 - 10 mm |
| Productivity | 6400 - 10000 pcs./h (0.03 - 0.5 mm² ) / 2700 - 4000 pcs./h (0.5 - 1.5 mm² ) |
| Blade material | High speed steel/tungsten steel (optional) |
| Display mode | 10" touchscreen |
| Program storage capacity | 100 programs (editable program name / quick copy button) |
| Detection | No wire detection; low air pressure detection |
| Power supply | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards |
| Compressed air connection | 0.5 - 0.7 MPa |
| Weight | 300 kg |
| Dimension | 1210 * 770 * 1370 mm |
