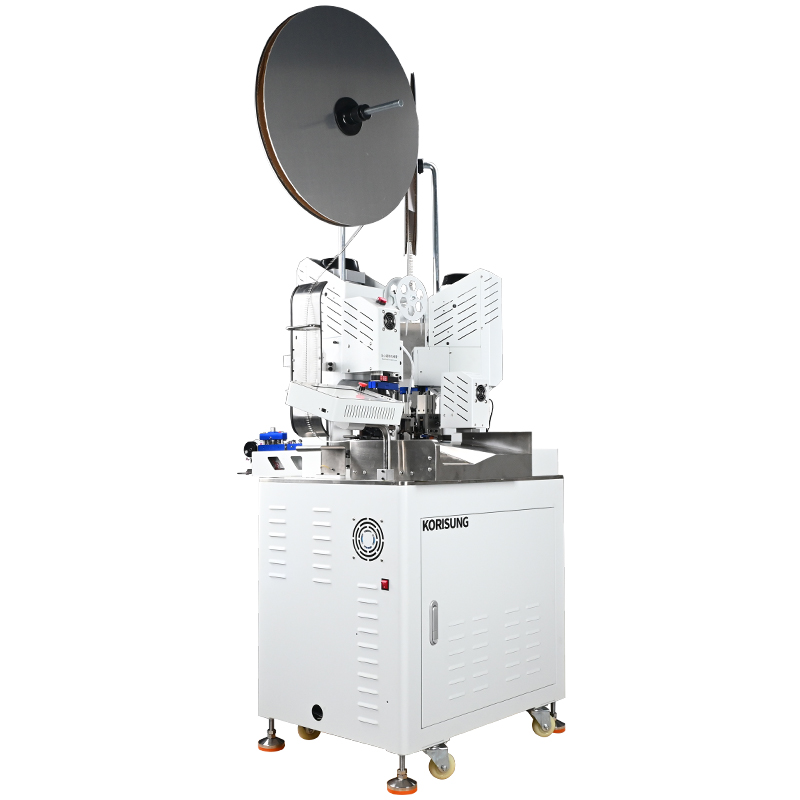

The MAC 305 is a fully automatic 2-side crimping machine to cut, strip and crimp wires – different replaceable applicators for different terminals that make 1 machine meet a variety of industrial applications.
| MAC 305 | |
|---|---|
| Conductor cross section | 0.1 - 1.5 mm² (custom option) |
| Cutting length | 45 - 99999.9 mm |
| Cutting length increment | 0.01 mm |
| Cutting length tolerance | < 0.002 * L |
| Full stripping length (left side) | 1.5 - 10 mm |
| Full stripping length (right side) | 1.5 - 10 mm |
| Stripping length increment | 0.01 mm |
| Crimping force | 2 T |
| Stroke | 30 mm |
| Productivity | 4000 pcs./h (L = 100 mm) |
| Blade material | High speed steel/tungsten steel (optional) |
| Display mode | 7" touchscreen |
| Program storage capacity | 100 programs (editable program name / quick copy button) |
| Detection | No wire detection; crimping loss detection; wire stuck detection; low air pressure detection |
| Power supply | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards |
| Compressed air connection | 0.4 - 0.6 MPa |
| Weight | 358 kg |
| Dimension | 800 * 700 *1500 mm |
