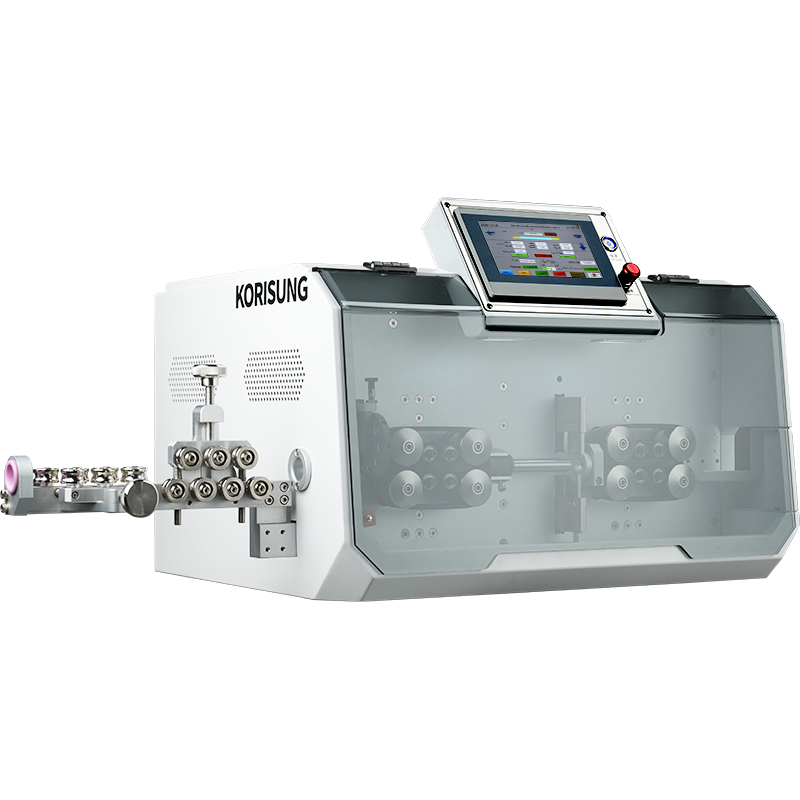

The MCS 325 cable cutting and stripping machine processes max. 50 mm² wires and cables, suitable for single wires, multi-core cables, shielded cables, PVC wires, flat cables, and other electric cables.
1. Up to 3500 pcs./h productivity (depending on wire size and cutting length).
2. Different guide tube shapes and sizes for various wire types and cable types.
3. Standard universal V blades and optional radius blades for special insulation materials.
4. 16-roller plus belts driving: ensures no scratch mark on wire insulation/cable jacket.
5. 7’’ touchscreen with a straightforward program, and there are 100 programs available for operators to store different processing data for different wires and cables, such as program name, cutting length, stripping length, batch production number, and other specific parameters.
6. Maximized cutting length up to 999,999.99 mm to cover most processing needs of our customers.
7. The blade set is made from imported high-speed steel with a longer lifetime of up to 12 months (according to production per day).
8. The blade’s motion is powered by servo motors that precisely cut and strip.
9. The machine features a [stripping pressure] function to increase the pressure between the upper roller set and the lower roller for some special cables that are not easy to strip.
10. Safety guard with interlock to guarantee the safety of operation.
11. Various processing modules to add for future demands: middle strip module (window strip module), twist module, and other custom modules.
12. Optional peripherals: pre-feeder, stacker, coiler, and ink-jet printer.
| MCS 325 | |
|---|---|
| Conductor cross section | 0.75 - 50 mm² |
| Cutting length | 1 - 999999.99 mm |
| Cutting length increment | 0.01 mm |
| Cutting length tolerance | < 0.002 * L (L = cutting length) |
| Full stripping length (left side) | 1 - 200 mm |
| Full stripping length (right side) | 1 - 100 mm |
| Partial stripping length (left side) | 1 - 1500 mm |
| Partial stripping length (right side) | 1 - 300 mm |
| Stripping length increment | 0.01 mm |
| Max. guide tube diameter | 20 mm |
| Productivity | 2000 - 3500 pcs./h (depending on wire size and cutting length) |
| Blade material | High speed steel/tungsten steel (optional) |
| Display mode | 7" touchscreen |
| Driving mode | 16-roller driving (stepper motor) (optional servo motor) |
| Feeding mode | Belts feeding with no scratch mark guarantee + adjustable roller pressure |
| Roller gap adjustment | Auto-change according to the value set in the program |
| Program storage capacity | 100 programs (editable program name / quick copy button) |
| Power | 1 kW |
| Rated power | 1.3 kW |
| Power supply | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards |
| Compressed air connection | 0.5 - 0.7 MPa |
| Weight | 90 kg |
| Dimension | 680 * 605 * 520 mm |
