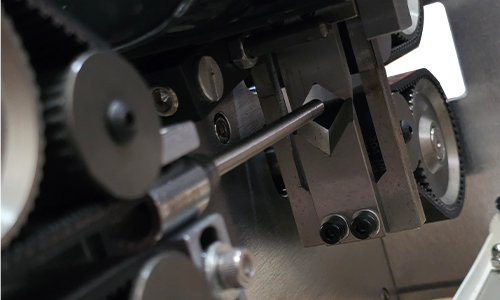

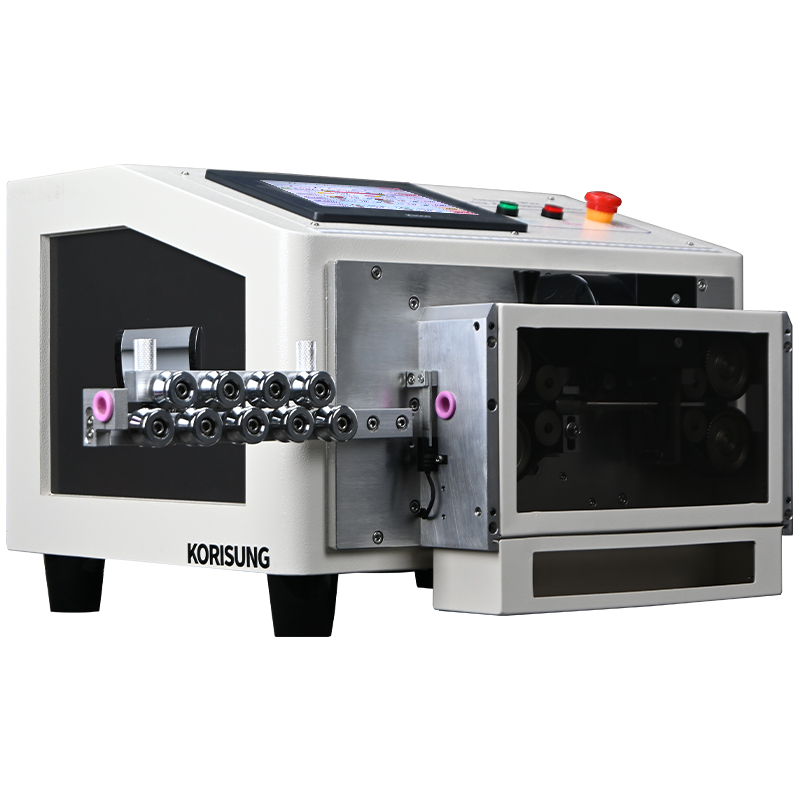

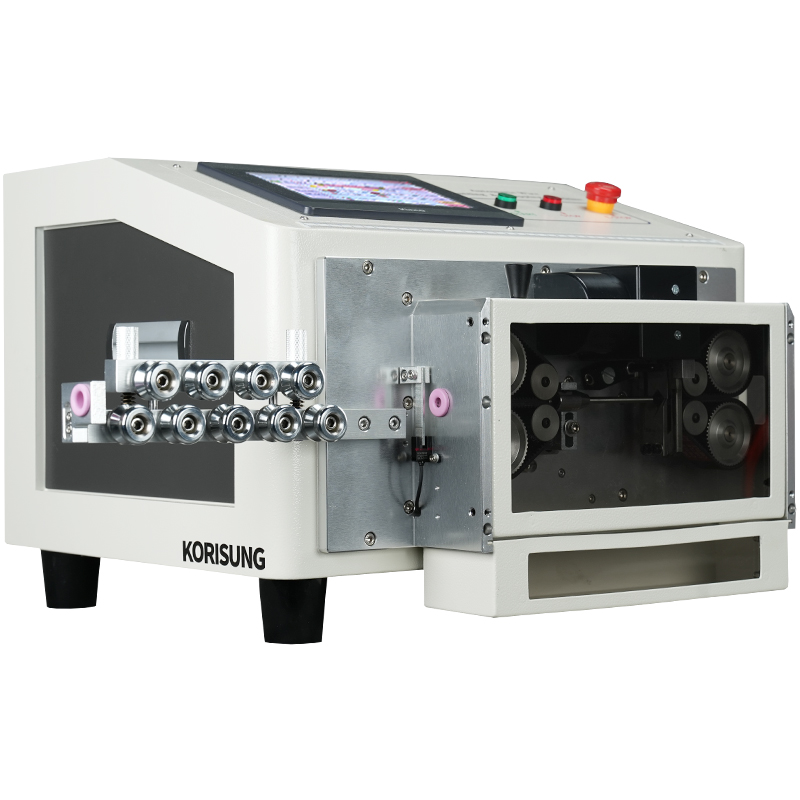

The MCS 300 is an economical wire cutting and stripping machine that can process 0.03 – 6 mm² electric single wires with the V blade set.

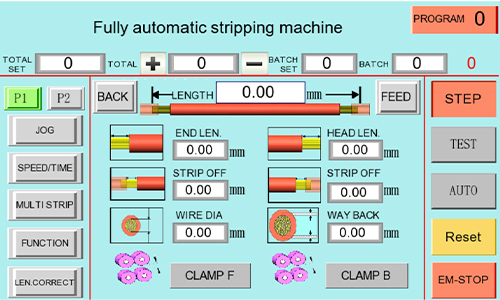

1. Touchscreen data setup (cutting length, stripping length, etc.).

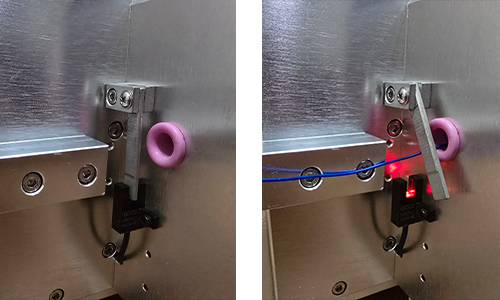

2. Compact design plus safety guard with interlock.
3. Automatic wire feeding (forward / backward), activation by alarm, and jog mode for operating manually.
4. Useful cutting length tolerance correction button.
5. Optional add-on: table, wire clamp, and conveyor.
| Model | MCS 300 | MCS 300S |
|---|---|---|
| Conductor cross section | 0.1 - 6 mm² | 0.03 - 6 mm² |
| Cutting length | 0.01 - 99999.9 mm | 0.01 - 99999.9 mm |
| Cutting length increment | 0.01 mm | 0.01 mm |
| Cutting length tolerance | < 0.002 * L (L = cutting length) | < 0.002 * L (L = cutting length) |
| Full stripping length (left side) | 0.01 - 30 mm | 0.01 - 30 mm |
| Full stripping length (right side) | 0.01 - 30 mm | 0.01 - 30 mm |
| Stripping length increment | 0.01 mm | 0.01 mm |

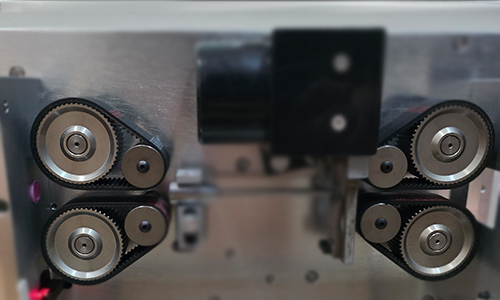

| Feeding mode | Roller feeding + manual feeding gap adjustment | Belt feeding + auto feeding gap adjustment in the program |
| Productivity | 2000 - 4500 pcs./h (length 50 - 1000 mm) | 2500 - 6000 pcs./h (length 50 - 1000 mm) |
| Blade material | High speed steel/tungsten steel (optional) | High speed steel/tungsten steel (optional) |
| Display mode | 4.3'' touchscreen | 7'' touchscreen |
| Program storage capacity | 500 programs (quick copy) | 500 programs (editable name, quick copy) |
| Useful function | Automatic feeding, activation by alarm, jog mode for operating manually | Automatic feeding, activation by alarm, jog mode for operating manually |
| Power | 400 W | 400 W |
| Rated power | 680 W | 680 W |
| Power supply | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards | Different types for different standards |
| Compressed air connection | 0.5 - 0.7 MPa (for blowing stripped wire insulation only) | 0.5 - 0.7 MPa (for blowing stripped wire insulation only) |
| Weight | 31.5 kg | 50 kg |
| Dimension | 470 * 465 * 350 mm | 470 * 465 * 350 mm |
