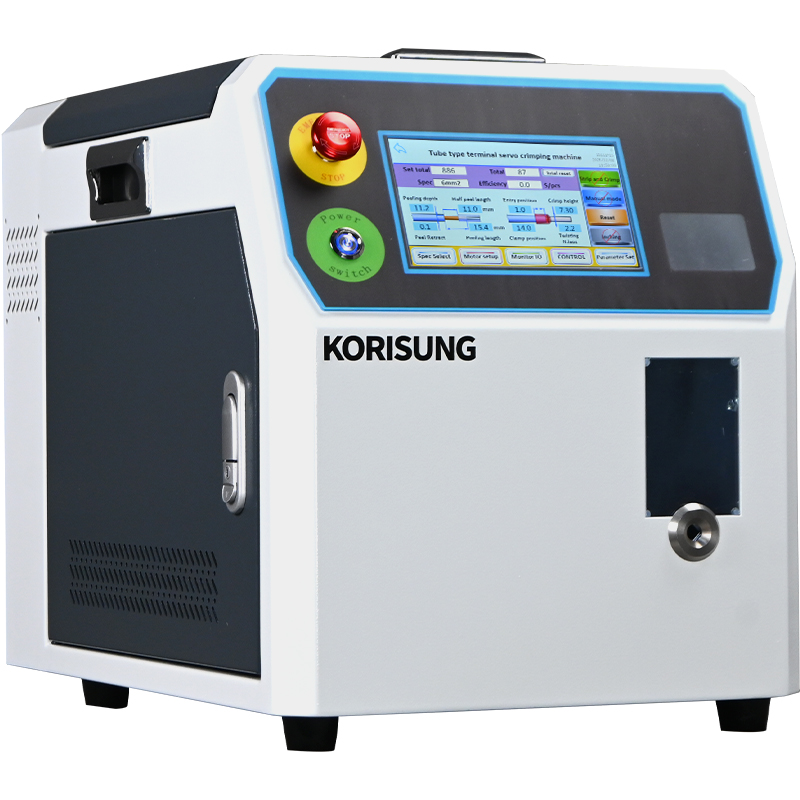

The MFCP 305 is a stripping, twisting and crimping machine for 0.3 – 16 mm² ferrules/tubular terminals and also the DEUTSCH DT Connectors. Quadrilateral crimping shape, and a custom option for crimping module for specific crimping shape.
| MFCP 305 | |
|---|---|
| Applicable wire type | BVR, RV, etc. |
| Conductor cross section | 0.3 - 16 mm² |
| Stripping length | 6 - 30 mm (min. insulation length 45 mm) |
| Terminal insulation length | < 11 mm |
| Terminal conductor length | < 20 mm |
| Feeding mode | Automatic vibrating feeding |
| Crimping shape | Quadrilateral (4-sides) (custom option) |
| Productivity | 3.2 s/pcs. |
| Display mode | 10" touchscreen |
| Detection | Terminal detection and safety door detection |
| Power | 1.2 kW |
| Power supply | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards |
| Compressed air connection | 0.6 - 0.8 MPa |
| Working temperature | 0 - 35 degree centigrade |
| Working humidity | 30 - 80 % |
| Weight | 62 kg |
| Dimension | 520 * 360 * 425 mm |
