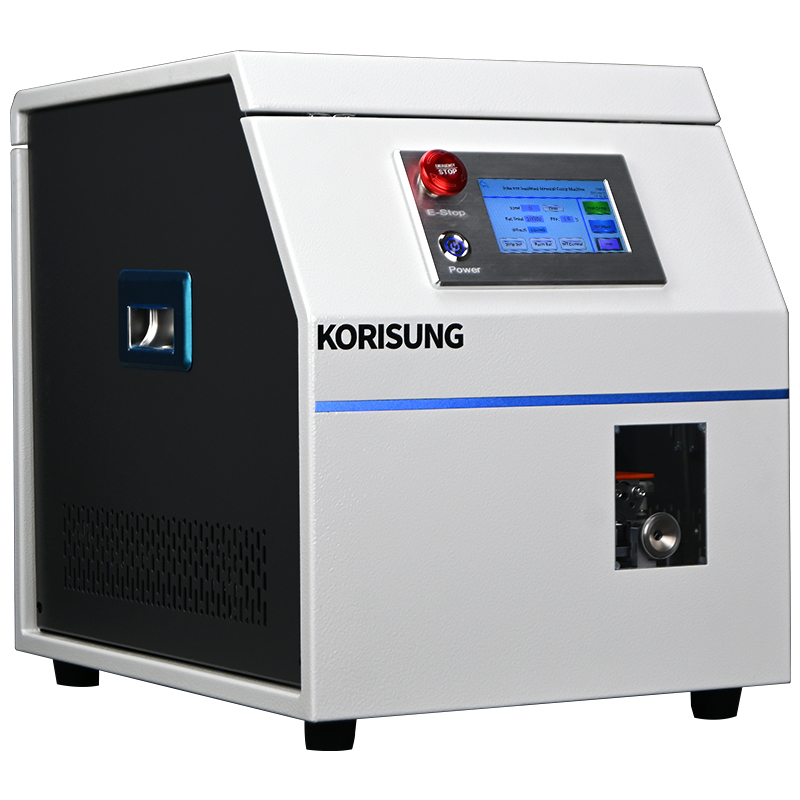

The MFCP 300 is a stripping, twisting and crimping machine for 0.14 – 4 mm² ferrules/tubular terminals. Quadrilateral crimping shape, and a custom option for crimping module for specific crimping shape.
| MFCP 300 | |
|---|---|
| Applicable wire type | BVR, RV, etc. |
| Conductor cross section | 0.14 - 4 mm² |
| Stripping length | 3 - 16 mm (min. insulation length 50 mm) |
| Terminal insulation length | < 7.5 mm |
| Terminal conductor length | < 12 mm |
| Feeding mode | Automatic vibrating feeding |
| Crimping shape | Quadrilateral (4-sides) (custom option) |
| Productivity | 2.2 s/pcs. (twist off) / 2.5 s/pcs. (twist on) |
| Display mode | 4.3" touchscreen |
| Detection | Terminal detection and safety door detection |
| Power | 300 W |
| Power supply | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards |
| Compressed air connection | 0.6 - 0.8 MPa |
| Working temperature | 0 - 35 degree centigrade |
| Working humidity | 30 - 80 % |
| Weight | 43 kg |
| Dimension | 450 * 350 * 400 mm |
