Stripping & Crimping

Korisung’s wire stripping and crimping machines are designed for different terminals such as ferrules, in-reel terminals, and loose terminals.

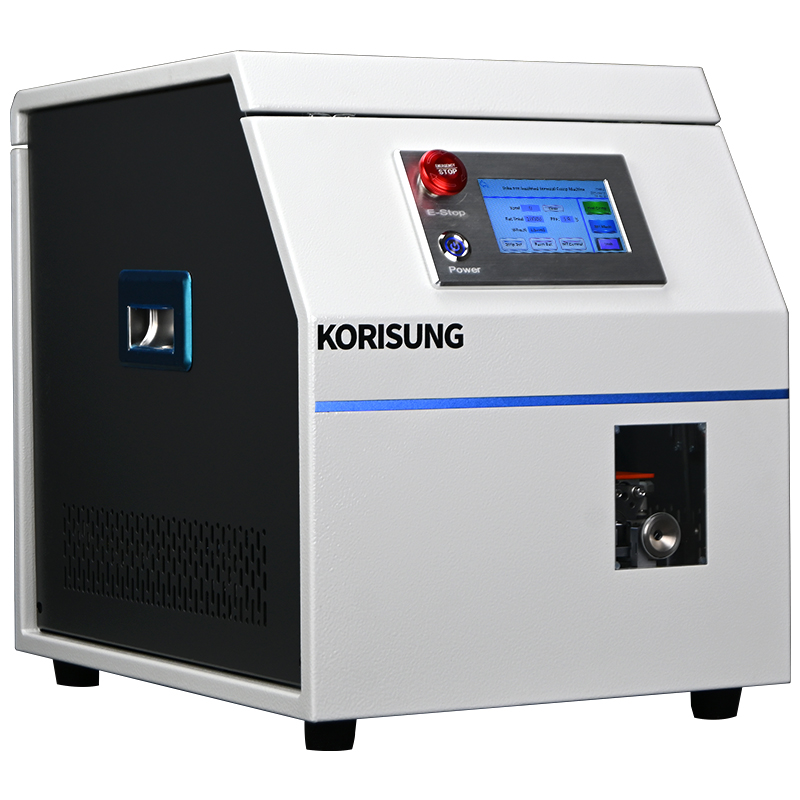

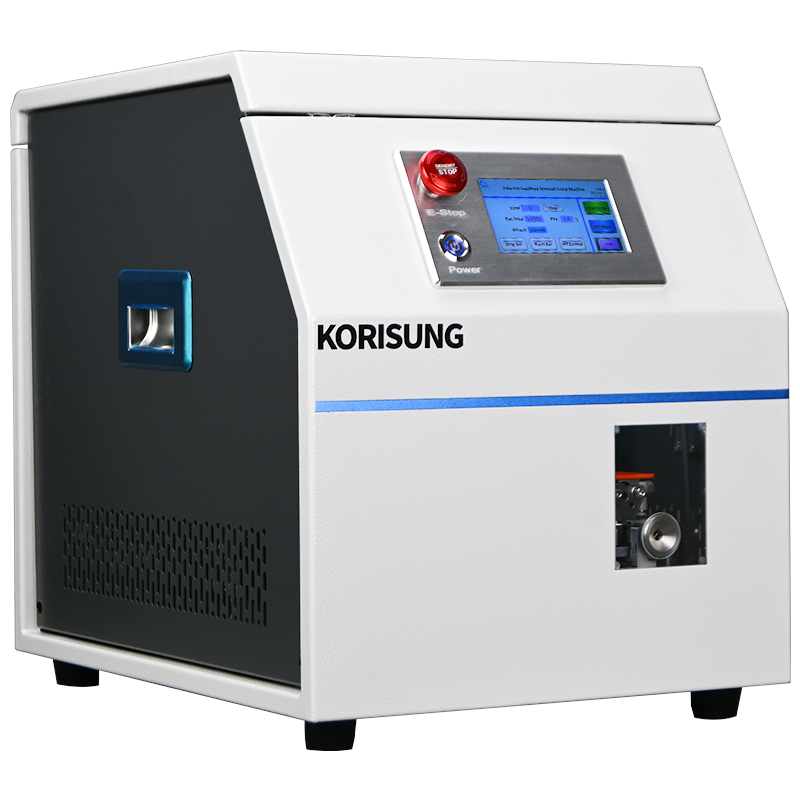

MFCP 300

MFCP 300

The MFCP 300 is a stripping, twisting and crimping machine for 0.14 - 4 mm² ferrules/tubular terminals. Quadrilateral crimping shape, and a custom option for crimping module for specific crimping shape.
MFCP 305

MFCP 305

The MFCP 305 is a stripping, twisting and crimping machine for 0.3 - 16 mm² ferrules/tubular terminals. Quadrilateral crimping shape, and a custom option for crimping module for specific crimping shape.
MSCP 300

MSCP 300

The MSCP 300 is a stripping & crimping machine to process 0.03 - 0.5 (custom option) mm² single wires or core wires in the multi-conductor cables for in-reel side feeding terminals such as TE, Molex, JST, etc. Optional enhanced crimping force for larger wires.
MSCP 305

MSCP 305

The MSCP 305 is a universal stripping and crimping machine for side feeding terminals and end feeding terminals from such as TE, MOLEX, and JST, which is applicable for 0.2 - 1.5 mm² (custom option) wires.
MSCP 325

MSCP 325

The MSCP 325 is an all-servo-powered crimping machine with the memory capacity of the crimping height that has a quick setup for different terminals after replacing applicators, which is widely used for electric cables and automotive cables.
MSCP 330

MSCP 330

The MSCP 330 is a high precision wire stripping and crimping machine that processes 2 wires per time. Optional crimping force monitor (CFM) for real-time quality monitoring.
MSCP 335

MSCP 335

The MSCP 335 is a stripping and crimping machine specifically designed for the multi-conductor cables' continuous core wire crimping (1 - 12 core wires). Switchable working modes between continuous crimping or single crimping.
MVSCP 300

MVSCP 300

The MVSCP 300 stripping and crimping machine is equipped with a customized vibrating bowl per terminal size/type to automatically feed loose terminals to the processing unit saving lots of operation time.
