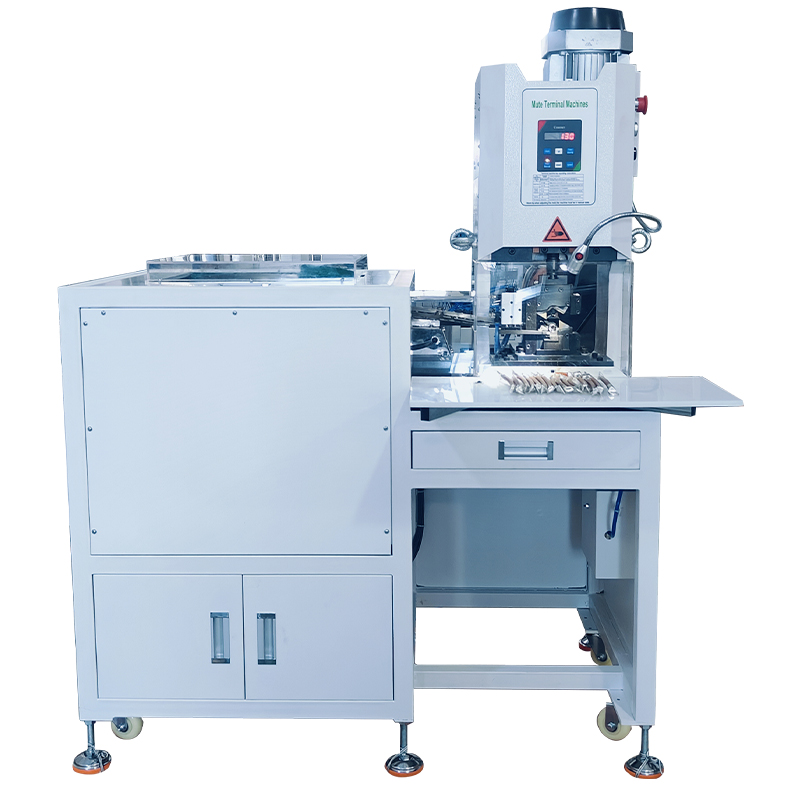

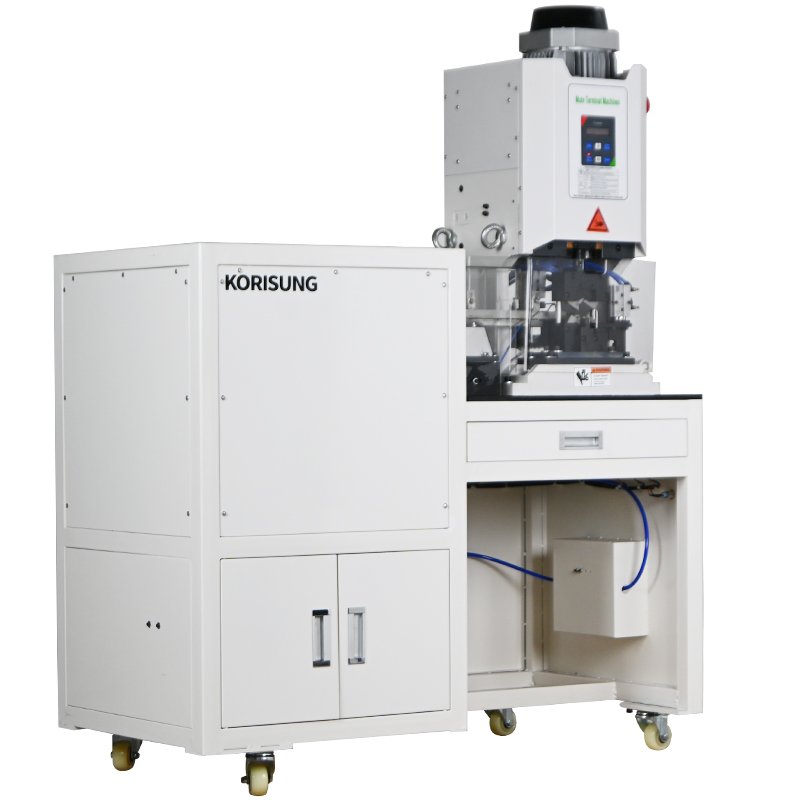

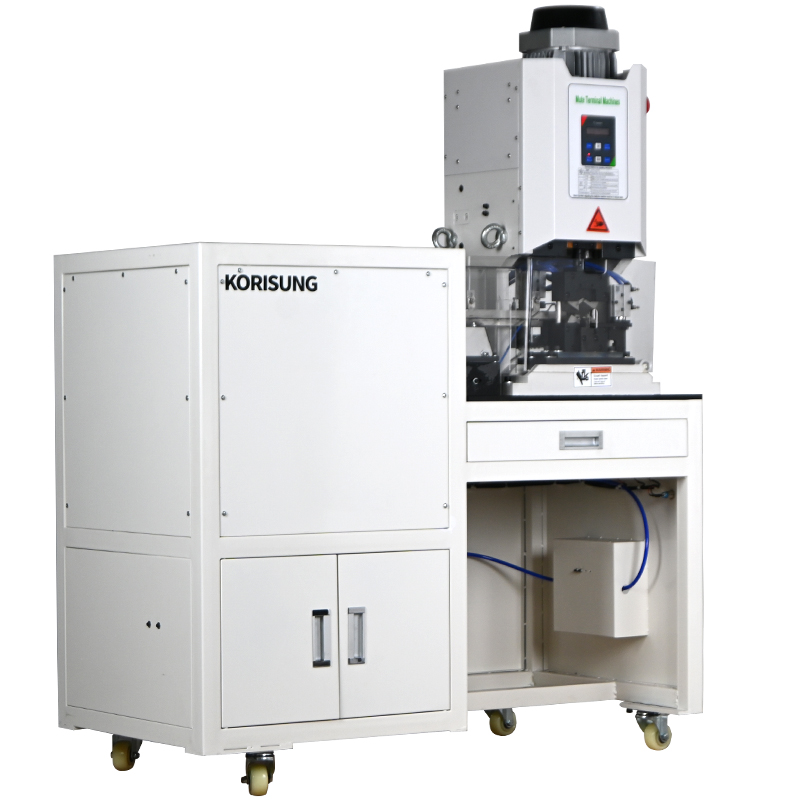

The MVCP 300 is a crimping machine with a custom vibrating bowl that automatically feeds loose terminals to the crimping mechanism for easier operation.
| MVCP 300 | |
|---|---|
| Applicable terminal type | Wide range of loose terminals and lugs |
| Feeding mode | By vibrating bowl |
| Power of vibrating bowl | 150 W (custom option) |
| Crimping force | 2T (custom option) |
| Crimping motor power | 0.75 kW (custom option) |
| Crimping applicator | Customized according to terminal samples |
| Power of motherboard | 1.5 kW (custom option) |
| Sliding block stroke | 30 mm |
| Display mode | LCD with physical button |
| Power supply | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards |
| Compressed air connection | 0.5 - 0.7 MPa |
| Weight | 140 kg |
| Dimension | 860 * 450 * 1360 mm |
