EHCP 605

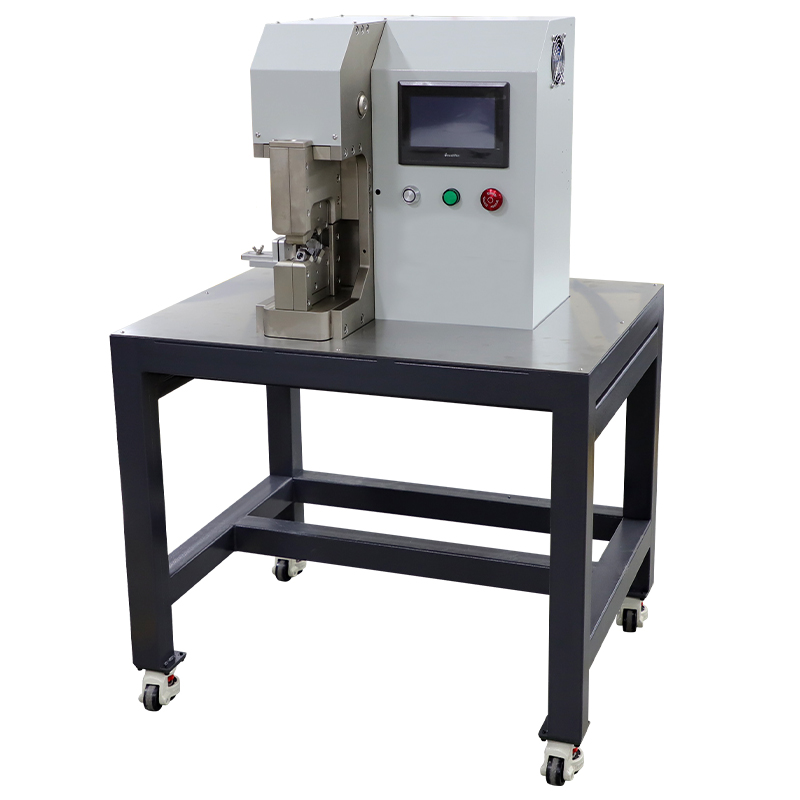

The EHCP 605 is a hexagon cable crimping machine for 90-degree angled cable lugs, standard F shape cable lugs and other tubular terminals. The machine has a maximum 120 mm² crimping capability.

TECHNICAL DATA

EHCP 605
Conductor cross section6 - 120 mm²
Crimping force20 T
Max. jaw opeing gap38 mm
Crimping width12.5 mm (custom option)
Power2.3 kW
Power supply220/110 V (50/60 Hz)
Power cord typeDifferent types for different standards
Weight160 kg
Dimension860 * 700 * 1260 mm
