EHCP 600

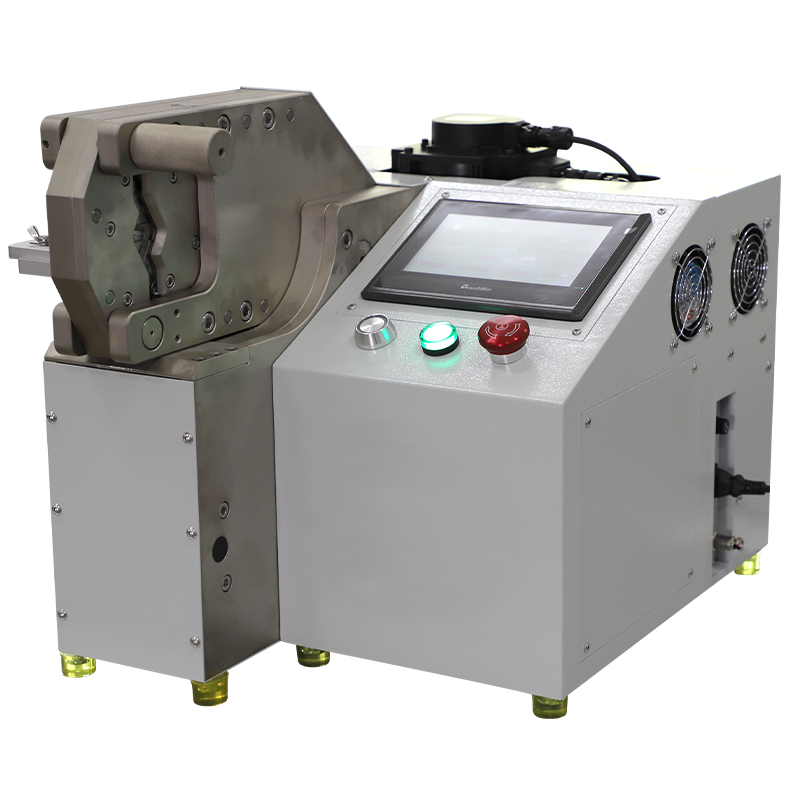

The EHCP 600 is a hexagon crimping machine for heavy electrical wire and cable lugs and tubular terminals. The machine has a maximum 120 mm² crimping capability.

HIGHLIGHTS

TECHNICAL DATA

EHCP 600
Conductor cross section6 - 120 mm²
Crimping force20 T
Max. jaw opeing gap32 mm
Crimping width12.5 mm (custom option)
Power2.3 kW
Power supply220/110 V (50/60 Hz)
Power cord typeDifferent types for different standards
Weight120 kg
Dimension500 * 450 * 480 mm

DOWNLOADS

Need a catalog or manual? Please submit the form and we will send it accordingly.
