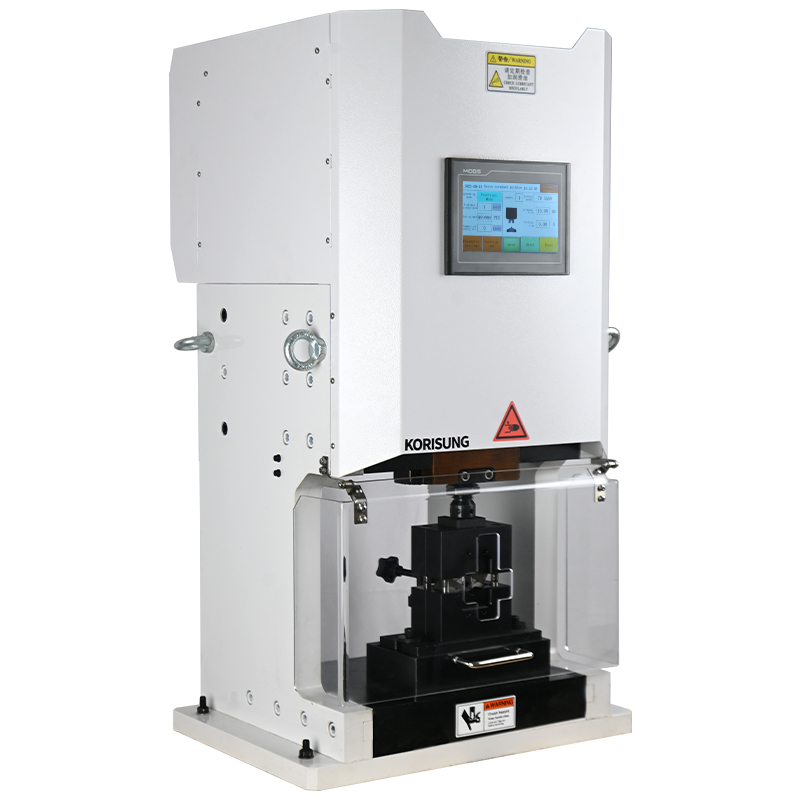

The ECPS 800 series wire crimping machines are powered by servo motor with a crimping force of 15 – 50 T. The machine has a memory capacity of 30 programs to store different crimp heights for different terminals for quick recall after changing the applicator.
| Model | ECPS 800S | ECPS 800M | ECPS 800L | ECPS 800U | ECPS 800UL |
|---|---|---|---|---|---|
| Crimping force | 15 Ton | 20 Ton | 30 Ton | 40 Ton | 50 Ton |
| Motor power | 3.6 kW | 5.5 kW | 7.5 kW | 9 kW | 11 kW |
| Stroke | 30 mm (optional 40 mm) | 30 mm (optional 40 mm) | 30 mm (optional 40 mm) | 30 mm (optional 40 mm) | 30 mm (optional 40 mm) |
| Power supply | 380/220 V (50/60 Hz) | 380/220 V (50/60 Hz) | 380/220 V (50/60 Hz) | 380/220 V (50/60 Hz) | 380/220 V (50/60 Hz) |
| Power cord type | Different types for different standards | Different types for different standards | Different types for different standards | Different types for different standards | Different types for different standards |
| Weight | 350 kg | 360 kg | 353 kg | 355 kg | 360 kg |
| Dimension | 520 * 540 * 980 mm | 520 * 540 * 980 mm | 520 * 540 * 1030 mm | 520 * 540 * 1030 mm | 520 * 540 * 1030 mm |
