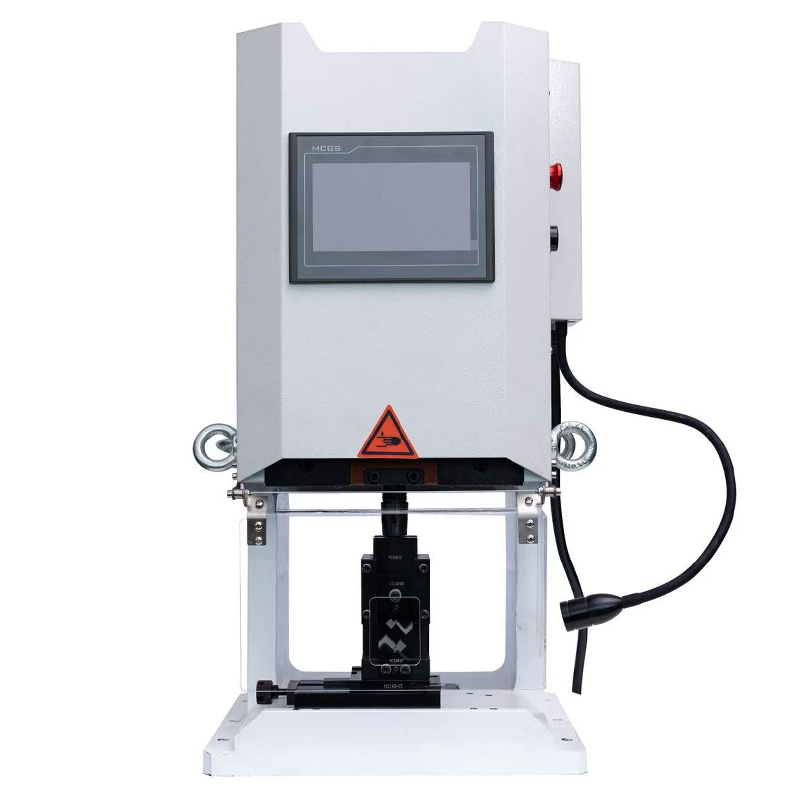

The ECPS 600 series is a servo crimping machine with crimping force 6 – 10 T. The machine has a memory capacity of 30 programs to store different crimp heights for different terminals for a quick recall after changing the applicator.
| Model | ECPS 600S | ECPS 600M | ECPS 600L |
|---|---|---|---|
| Crimping force | 6 Ton | 8 Ton | 10 Ton |
| Motor power | 1.5 kW | 2.3 kW | 2.3 kW |
| Stroke | 30 mm | 30 mm | 30 mm |
| Power supply | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards | Different types for different standards | Different types for different standards |
| Weight | 132 kg | 135 kg | 138 kg |
| Dimension | 400 * 380 * 740 mm | 400 * 380 * 740 mm | 400 * 380 * 740 mm |
