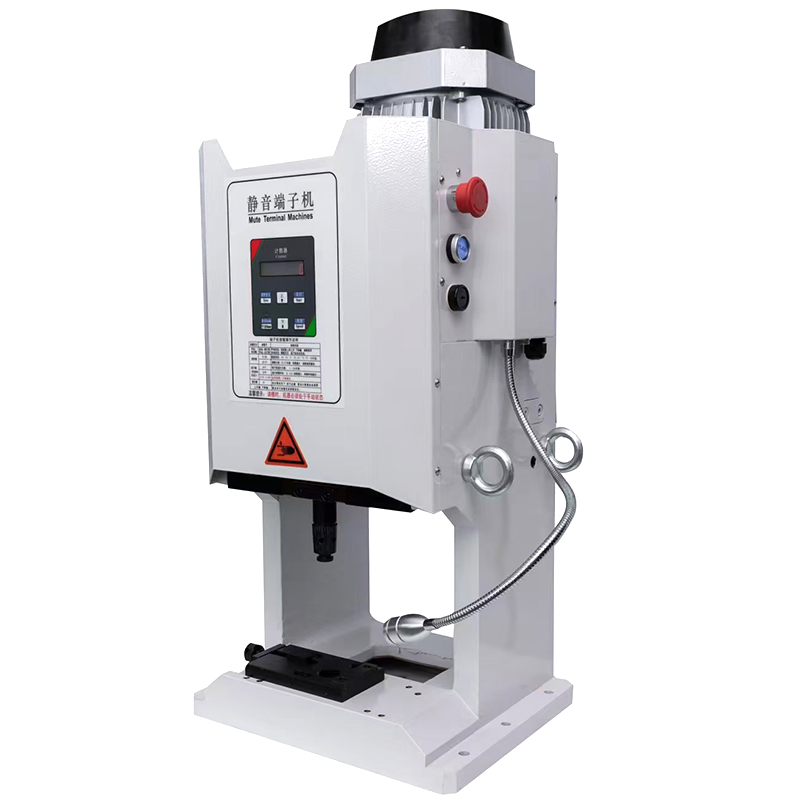

The ECP 600 is an economical crimping machine with 6-12 ton crimping force. The machine can crimp different terminals, wire connectors, and cable lugs by replacing the crimp applicators.
| Model | ECP 600S | ECP 600M | ECP 600L | ECP 600U |
|---|---|---|---|---|
| Crimping force | 6 Ton | 8 Ton | 10 Ton | 12 Ton |
| Motor power | 2.2 kW | 3 kW | 3 kW | 3.6 kW |
| Stroke | 30 mm (optional 40 mm) | 30 mm (optional 40 mm) | 30 mm (optional 40 mm) | 30 mm (optional 40 mm) |
| Power supply | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards | Different types for different standards | Different types for different standards | Different types for different standards |
| Weight | 135 kg | 140 kg | 145 kg | 150 kg |
| Dimension | 300 * 380 * 820 mm | 300 * 380 * 820 mm | 300 * 380 * 820 mm | 300 * 380 * 820 mm |
