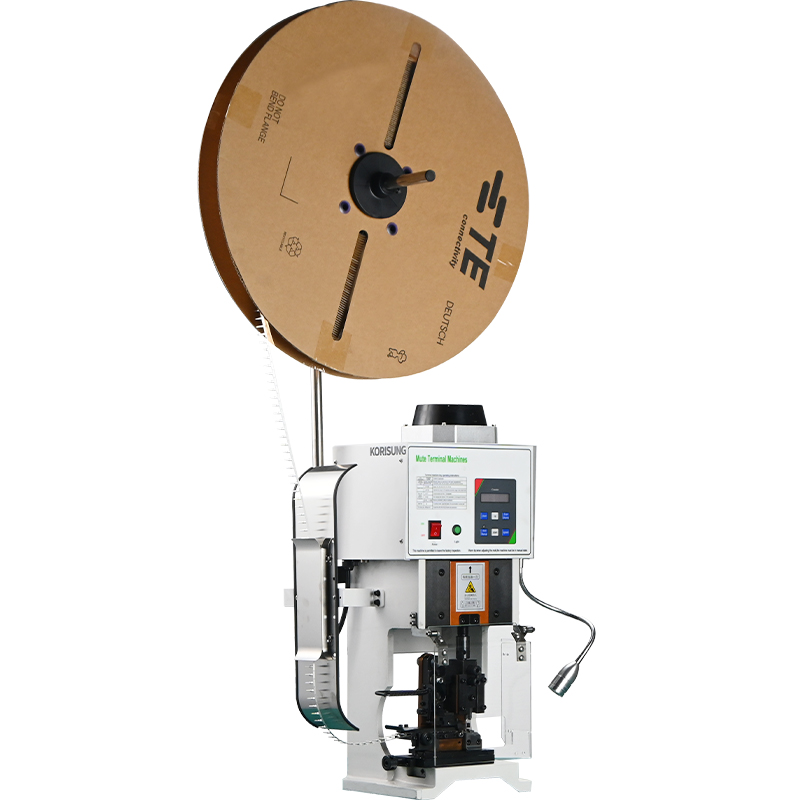

From 2-ton to 5-ton crimping force, the ECP 300 is an entry-level wire crimping machine that works for different types and sizes of terminals. The machine offers the highest flexibility and increases the production speed significantly, thanks to the replaceable applicator and fast changeover structure.
| Model | ECP 300S | ECP 300M | ECP 300L | ECP 300U |
|---|---|---|---|---|
| Crimping force | 2 Ton | 3 Ton | 4 Ton | 5 Ton |
| Motor power | 0.75 kW | 1.1 kW | 1.5 kW | 1.8 kW |
| Stroke | 30 mm | 30 mm | 30 mm | 30 mm |
| Power supply | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) | 220/110 V (50/60 Hz) |
| Power cord type | Different types for different standards | Different types for different standards | Different types for different standards | Different types for different standards |
| Weight | 48 kg | 50 kg | 70 kg | 73 kg |
| Dimension | 240 * 220 * 640 mm | 240 * 220 * 640 mm | 300 * 260 * 710 mm | 300 * 260 * 710 mm |
